Click to EnlargeOEM Replacement Brake Rotor
$43.47 each
Raybestos: 56242
OE Number: 12549136
Product Number: BR5593
PRODUCT DESCRIPTION

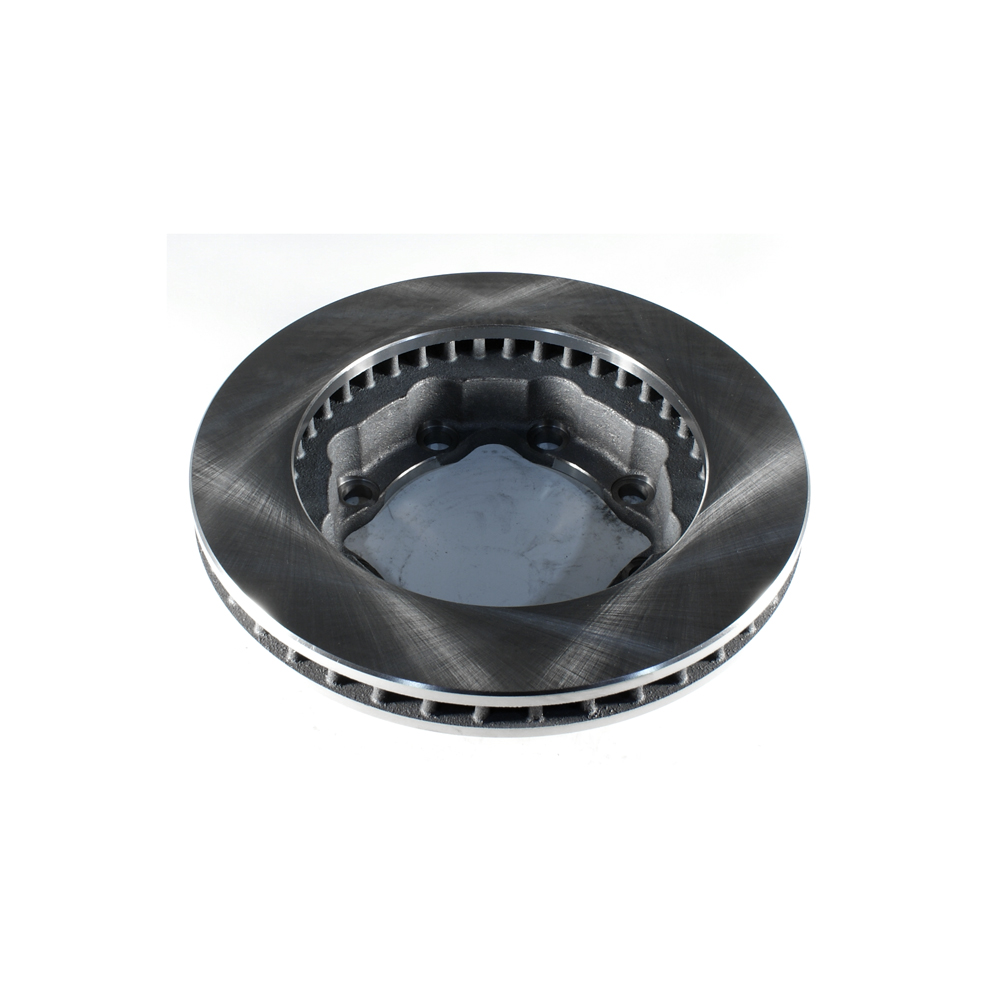

Position: Front OEM Replacement Brake Rotor
Brake Rotor
318mm, w/7500lb GVW, 8 Lug
Car Specs:
Drive Type: 4WD;
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 16.50 |
| Outside Diameter (mm): | 317.50 |
| Outside Diameter (in): | 12.50 |
| Inside Diameter (mm): | 211.20 |
| Inside Diameter (in): | 8.31 |
| Center Hole Diameter (mm): | 137.40 |
| Center Hole Diameter (in): | 5.41 |
| Product Height (mm): | 70.00 |
| Product Height (in): | 2.76 |
| Nominal Thickness (mm): | 32.90 |
| Nominal Thickness (in): | 1.30 |
| Discard Thickness (mm): | 30.86 |
| Discard Thickness (in): | 1.21 |
| Actual Weight (KG): | 9.160 |
| Actual Weight (lbs): | 20.19 |
| Part Description: | Brake Rotor |
| F/R: | Front |
