Click to EnlargeOEM Replacement Brake Rotor
$92.63 each
Raybestos: 56263
OE Number: 18060216
Product Number: BR5598
PRODUCT DESCRIPTION

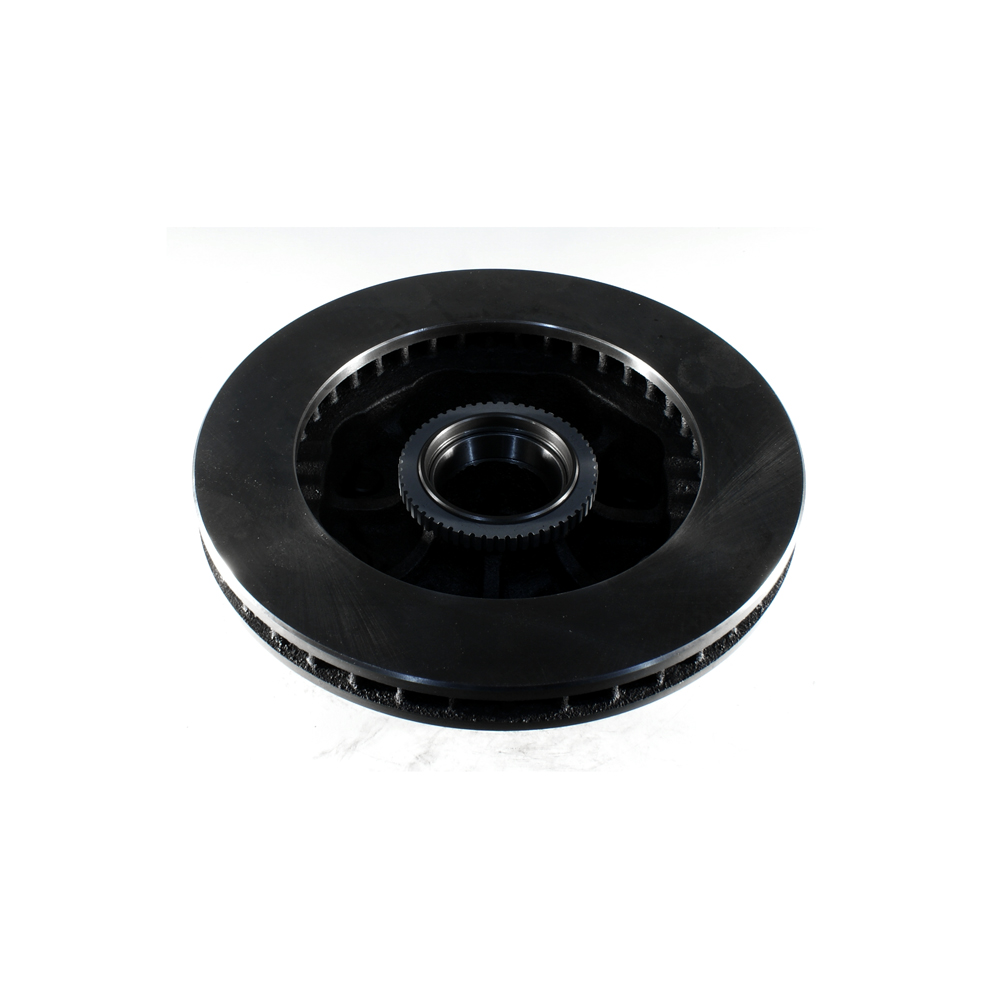

Position: Front OEM Replacement Brake Rotor
Brake Rotor
318mm, 7700 & 8600lb GVW, SRW
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 15.30 |
| Outside Diameter (mm): | 317.50 |
| Outside Diameter (in): | 12.50 |
| Inside Diameter (mm): | 211.00 |
| Inside Diameter (in): | 8.31 |
| Center Hole Diameter (mm): | 63.45 |
| Center Hole Diameter (in): | 2.50 |
| Product Height (mm): | 125.80 |
| Product Height (in): | 4.95 |
| Nominal Thickness (mm): | 32.60 |
| Nominal Thickness (in): | 1.28 |
| Discard Thickness (mm): | 30.86 |
| Discard Thickness (in): | 1.21 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Mounting Bolt Hole Circle Diameter (in): | 6.50 |
| Actual Weight (KG): | 16.600 |
| Actual Weight (lbs): | 36.59 |
| Part Description: | Brake Rotor |
| F/R: | Front |
