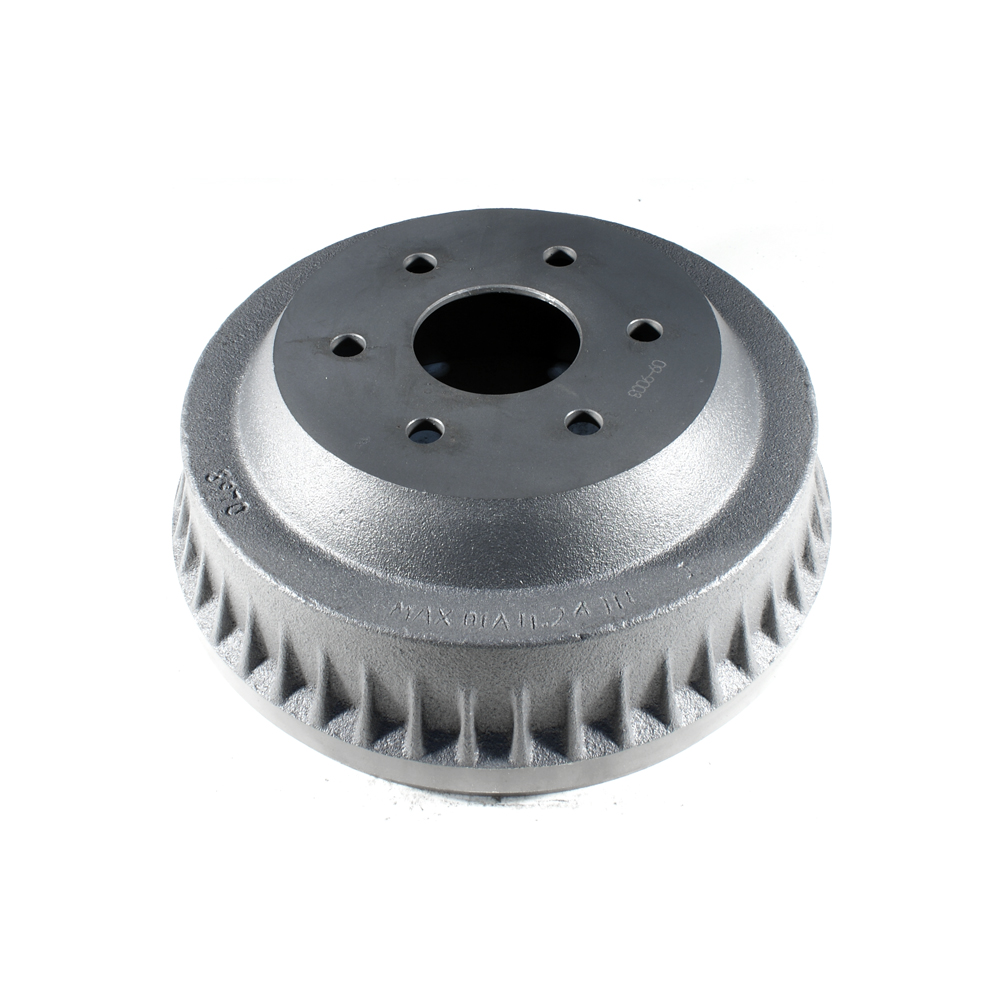

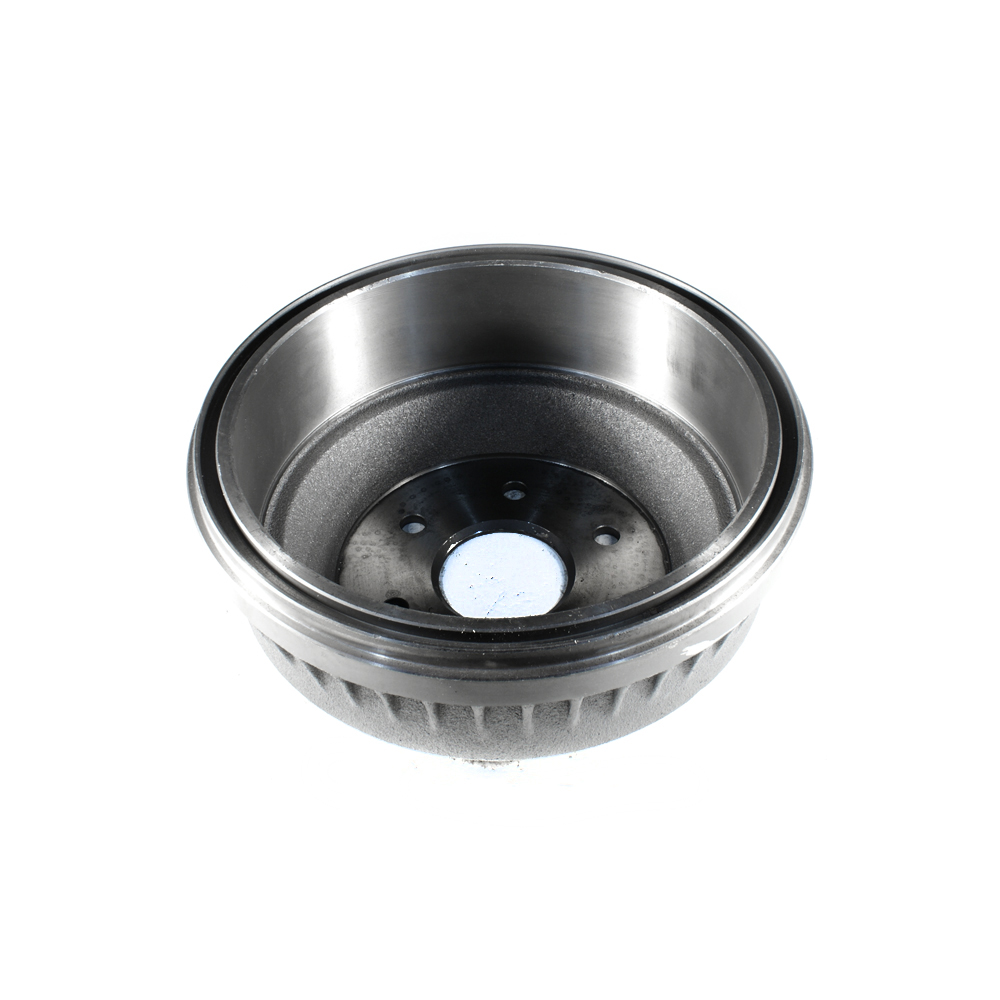

Click to EnlargeBrake Drum
$109.93 each
Raybestos: 2169
OE Number: 15693470
Product Number: BD8970
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
339mm
| Part Label: | Brake Drum |
| Bolt Holes: | 6 |
| Bolt Hole Diameter (mm): | 15.80 |
| Outside Diameter (mm): | 339.00 |
| Outside Diameter (in): | 13.35 |
| Inside Diameter (mm): | 283.40 |
| Inside Diameter (in): | 11.16 |
| Center Hole Diameter (mm): | 78.62 |
| Center Hole Diameter (in): | 3.10 |
| Product Depth (mm): | 127.00 |
| Product Depth (in): | 5.00 |
| Product Height (mm): | 135.00 |
| Product Height (in): | 5.31 |
| Maximum Drum Discard Diameter (mm): | 285.50 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 17.000 |
| Actual Weight (lbs): | 37.48 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
