Click to EnlargeBrake Drum
$164.36 each
Raybestos: 2591
OE Number: 15635951
Product Number: BD8997
PRODUCT DESCRIPTION
Position: Rear Brake Drum

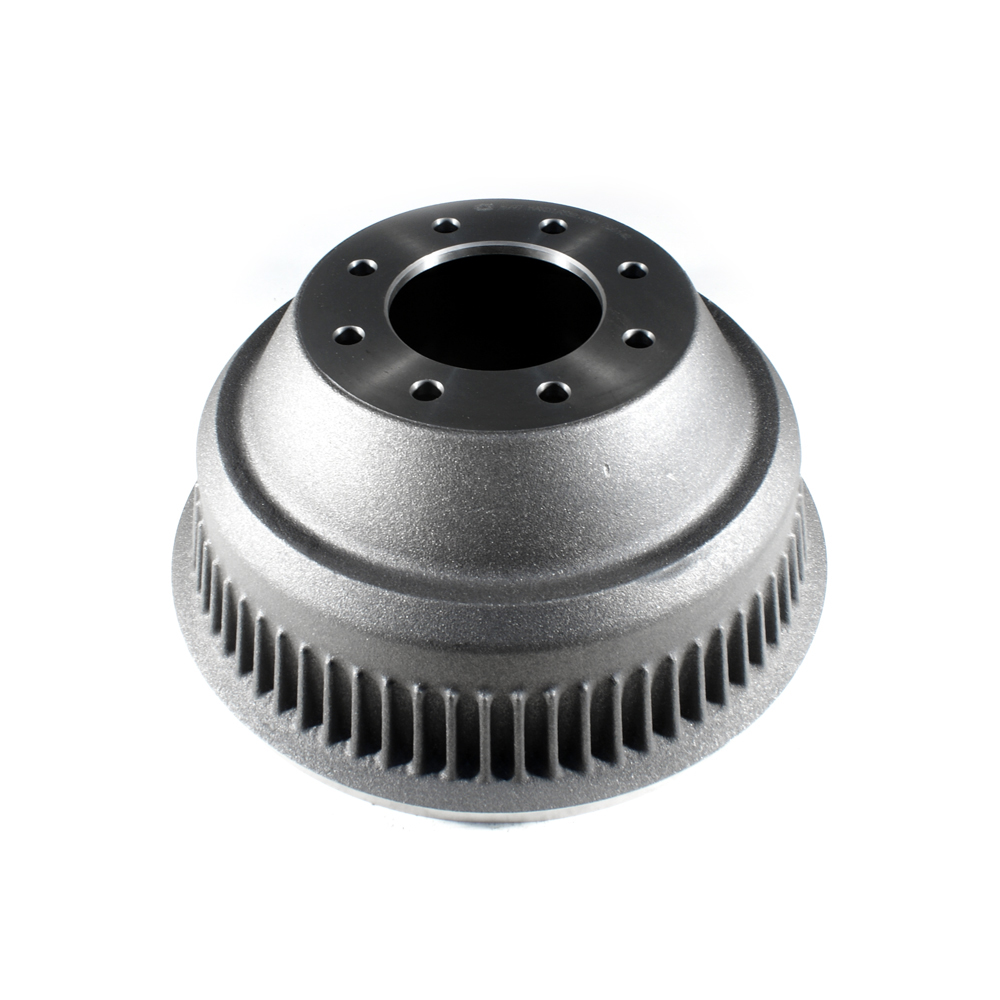

Brake Drum
DRW 404mm
| Part Label: | Brake Drum |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 15.60 |
| Outside Diameter (mm): | 404.00 |
| Outside Diameter (in): | 15.91 |
| Inside Diameter (mm): | 330.00 |
| Inside Diameter (in): | 12.99 |
| Center Hole Diameter (mm): | 116.80 |
| Center Hole Diameter (in): | 4.60 |
| Product Depth (mm): | 183.50 |
| Product Depth (in): | 7.22 |
| Product Height (mm): | 193.00 |
| Product Height (in): | 7.60 |
| Maximum Drum Discard Diameter (mm): | 332.50 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Actual Weight (KG): | 26.000 |
| Actual Weight (lbs): | 57.32 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
