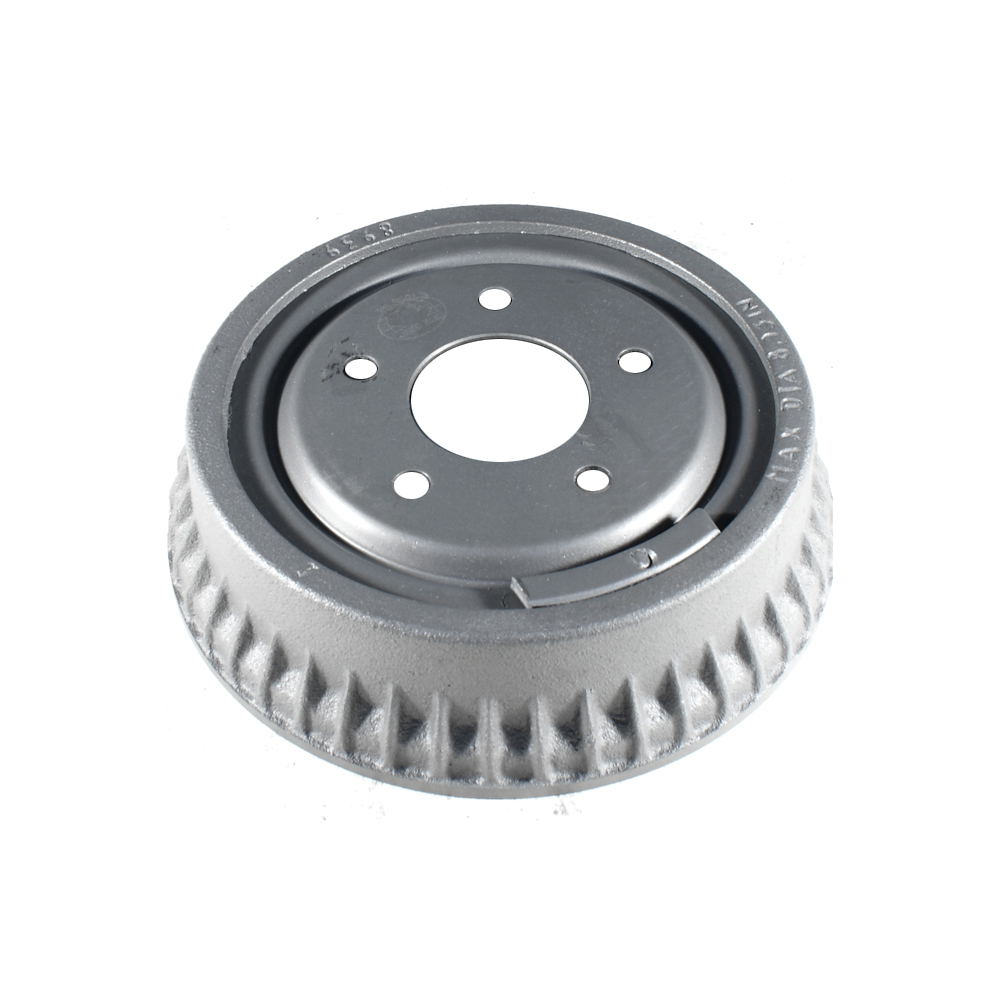

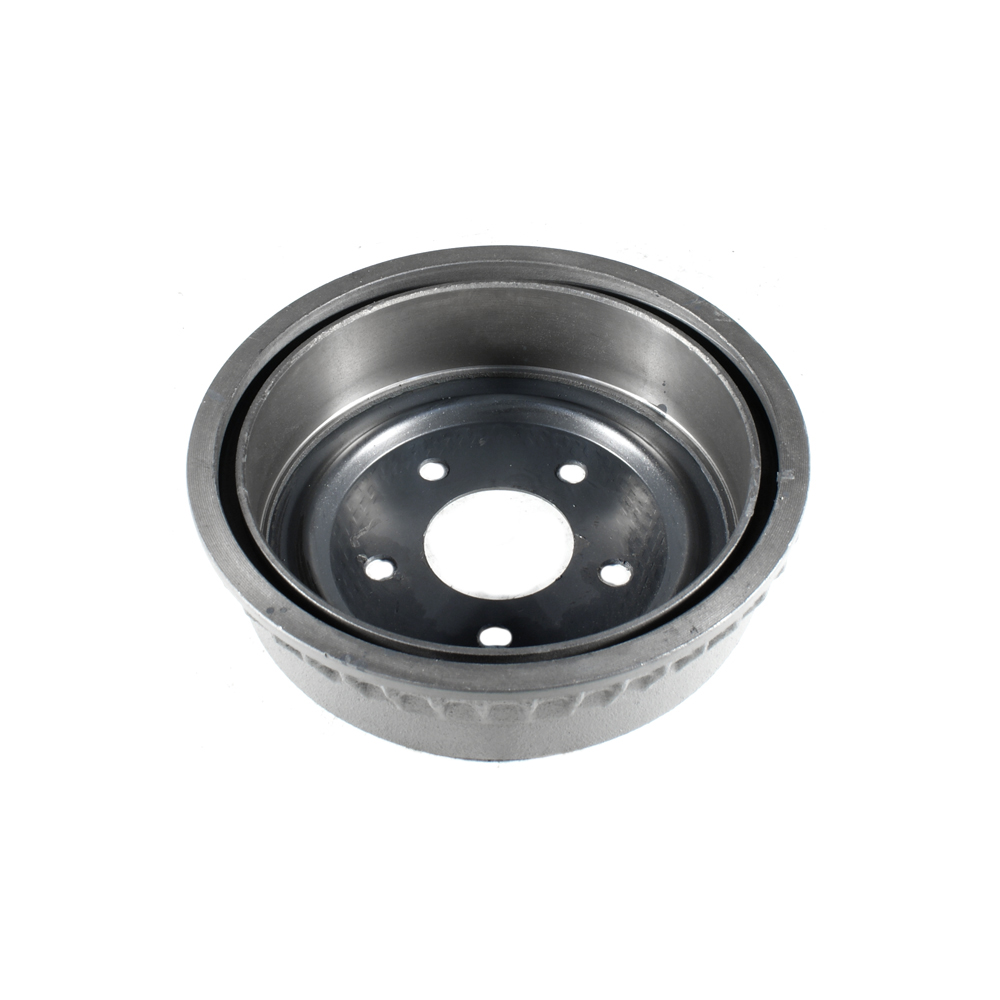

Click to EnlargeBrake Drum
$47.14 each
Raybestos: 2051
OE Number: 18042283
Product Number: BD8939
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
276mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.30 |
| Outside Diameter (mm): | 276.00 |
| Outside Diameter (in): | 10.87 |
| Inside Diameter (mm): | 225.00 |
| Inside Diameter (in): | 8.86 |
| Center Hole Diameter (mm): | 70.70 |
| Center Hole Diameter (in): | 2.78 |
| Product Depth (mm): | 67.45 |
| Product Depth (in): | 2.66 |
| Product Height (mm): | 73.00 |
| Product Height (in): | 2.87 |
| Maximum Drum Discard Diameter (mm): | 227.23 |
| Mounting Bolt Circle Diameter(mm): | 115.00 |
| Actual Weight (KG): | 6.980 |
| Actual Weight (lbs): | 15.39 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
