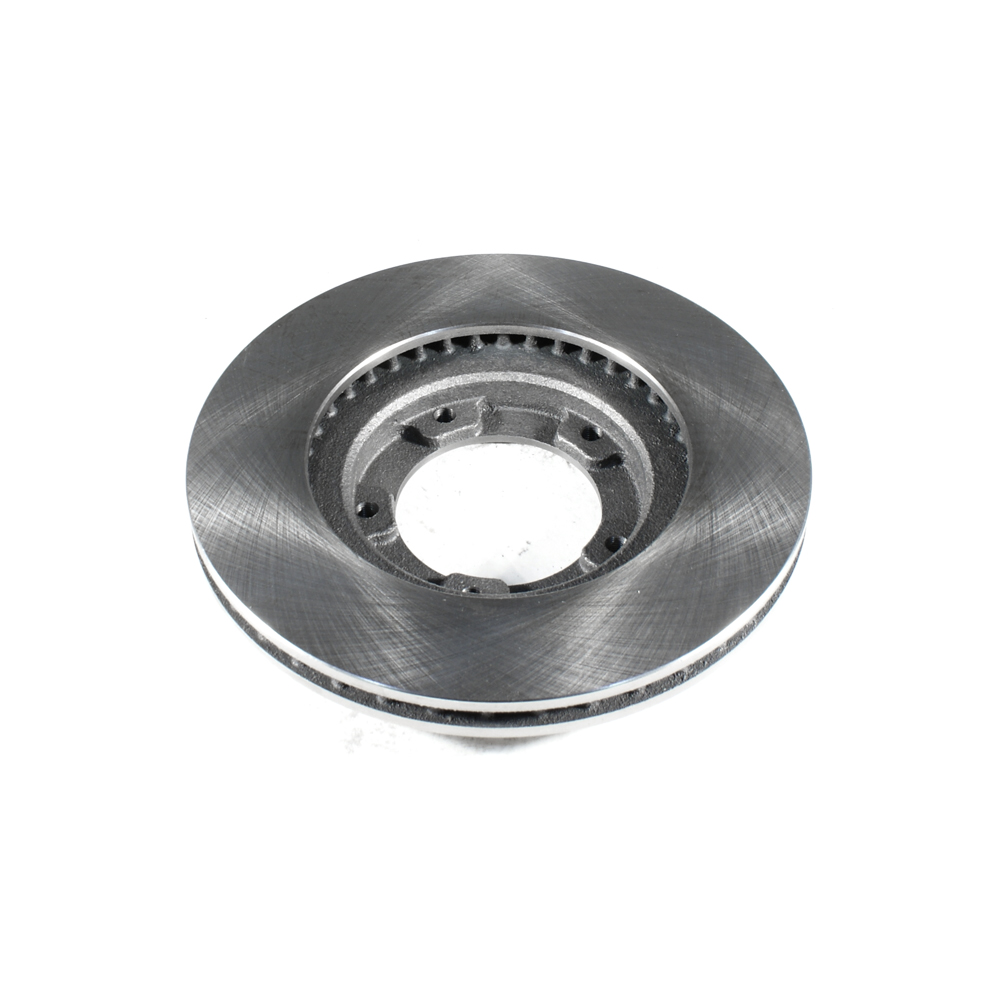

Click to EnlargeOEM Replacement Brake Rotor
$26.48 each
Raybestos: 96566
OE Number: 4351204010
Product Number: BR31146
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
254mm
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 10.00 |
| Outside Diameter (mm): | 253.70 |
| Outside Diameter (in): | 9.99 |
| Inside Diameter (mm): | 154.50 |
| Inside Diameter (in): | 6.08 |
| Center Hole Diameter (mm): | 86.00 |
| Center Hole Diameter (in): | 3.39 |
| Product Height (mm): | 41.20 |
| Product Height (in): | 1.62 |
| Nominal Thickness (mm): | 22.00 |
| Nominal Thickness (in): | 0.87 |
| Discard Thickness (mm): | 20.00 |
| Discard Thickness (in): | 0.79 |
| Mounting Bolt Circle Diameter(mm): | 110.00 |
| Mounting Bolt Hole Circle Diameter (in): | 4.33 |
| Actual Weight (KG): | 4.190 |
| Actual Weight (lbs): | 9.24 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
