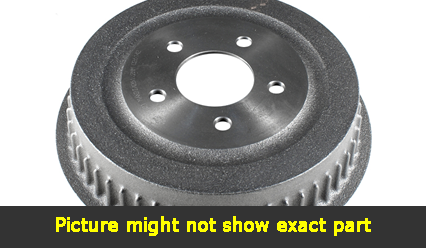

Click to EnlargeBrake Drum
$90.40 each
Raybestos: 9777
Product Number: BD80123
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 17.20 |
| Outside Diameter (mm): | 359.00 |
| Outside Diameter (in): | 14.13 |
| Inside Diameter (mm): | 295.00 |
| Inside Diameter (in): | 11.61 |
| Center Hole Diameter (mm): | 78.40 |
| Center Hole Diameter (in): | 3.09 |
| Product Depth (mm): | 103.80 |
| Product Depth (in): | 4.09 |
| Product Height (mm): | 112.00 |
| Product Height (in): | 4.41 |
| Nominal Thickness (mm): | 295.00 |
| Nominal Thickness (in): | 11.61 |
| Discard Thickness (mm): | 297.50 |
| Discard Thickness (in): | 11.71 |
| Maximum Drum Discard Diameter (mm): | 297.50 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 11.980 |
| Actual Weight (lbs): | 26.41 |
| Part Description: | Brake Drum |
| F/R: | Rear |
