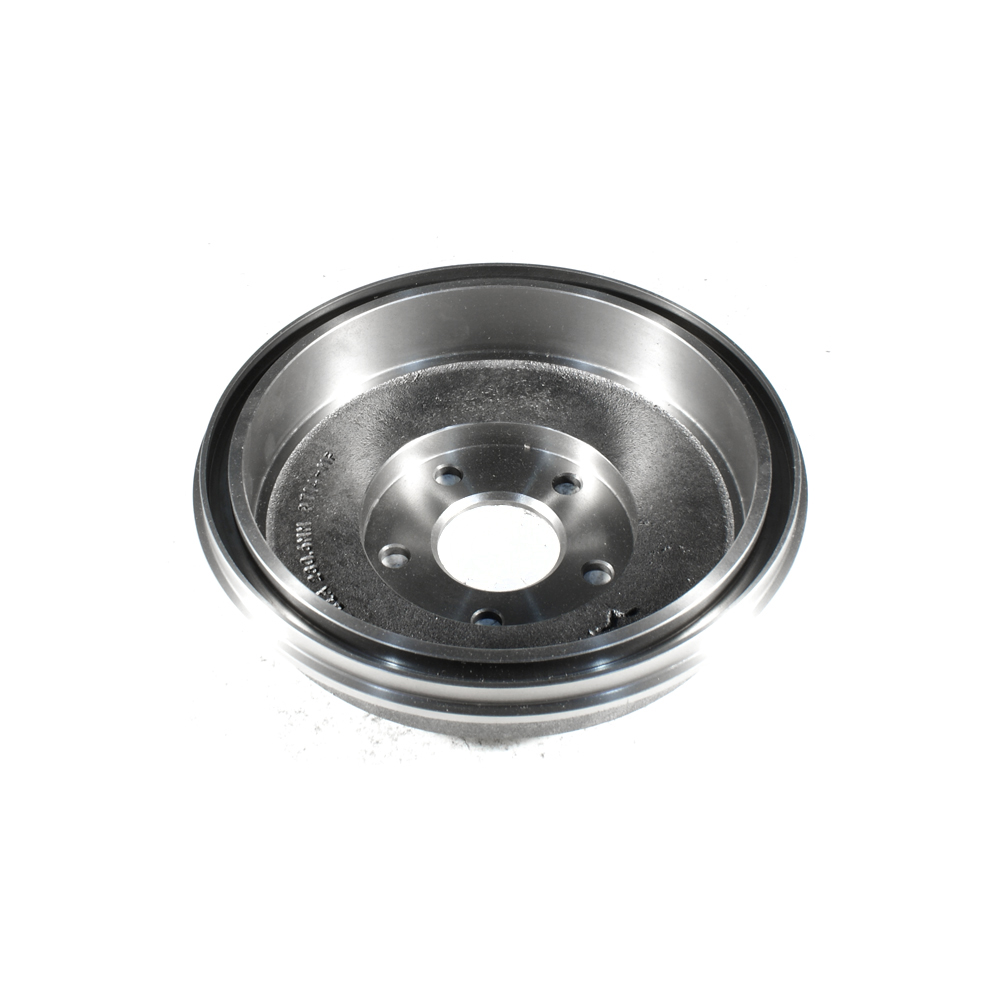

Click to EnlargeBrake Drum
$35.37 each
Raybestos: 9673
OE Number: 26740FA000
Product Number: BD35059
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
278mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.10 |
| Outside Diameter (mm): | 277.70 |
| Outside Diameter (in): | 10.93 |
| Inside Diameter (mm): | 228.60 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 58.00 |
| Center Hole Diameter (in): | 2.28 |
| Product Depth (mm): | 61.90 |
| Product Depth (in): | 2.44 |
| Product Height (mm): | 68.60 |
| Product Height (in): | 2.70 |
| Nominal Thickness (mm): | 228.60 |
| Nominal Thickness (in): | 9.00 |
| Discard Thickness (mm): | 230.60 |
| Discard Thickness (in): | 9.08 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 4.820 |
| Actual Weight (lbs): | 10.63 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
