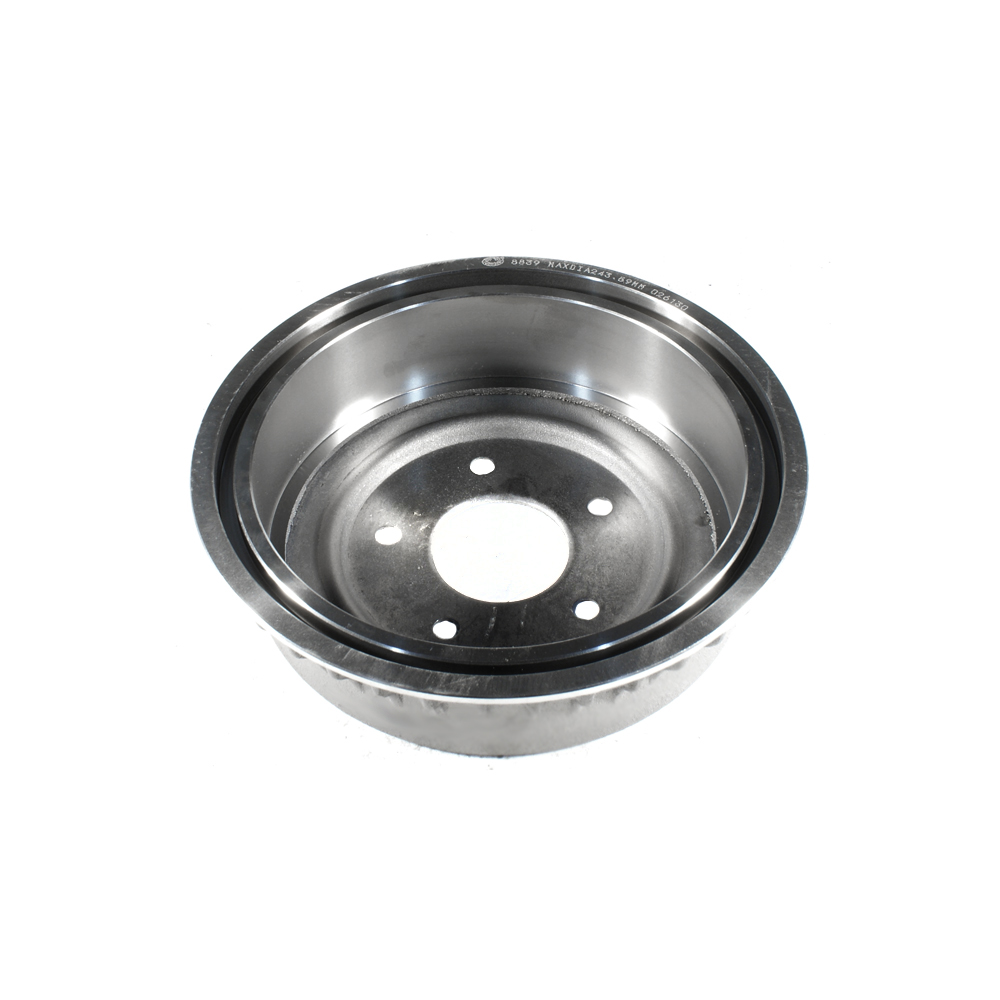

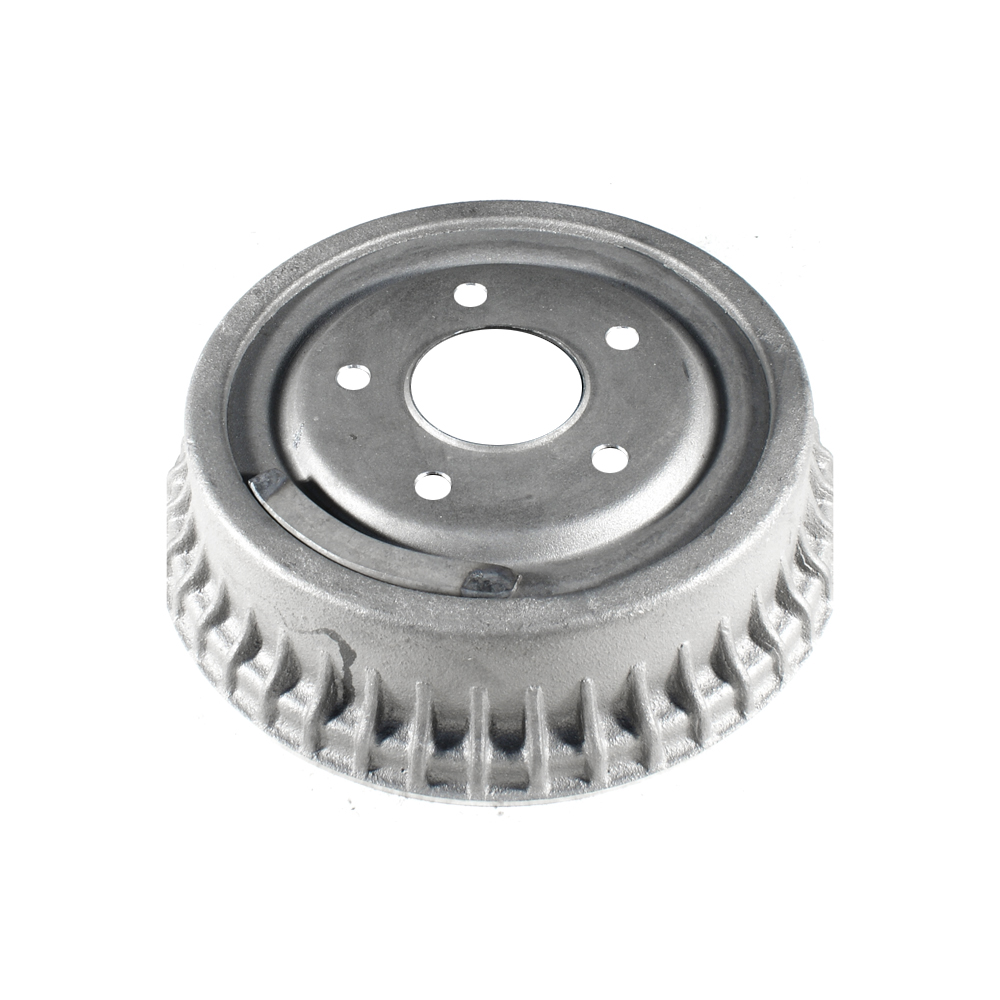

Click to EnlargeBrake Drum
$54.74 each
Raybestos: 2091
OE Number: 1249146
Product Number: BD8839
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
302mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.08 |
| Outside Diameter (mm): | 302.00 |
| Outside Diameter (in): | 11.89 |
| Inside Diameter (mm): | 242.00 |
| Inside Diameter (in): | 9.53 |
| Center Hole Diameter (mm): | 70.69 |
| Center Hole Diameter (in): | 2.78 |
| Product Depth (mm): | 75.99 |
| Product Depth (in): | 2.99 |
| Product Height (mm): | 79.00 |
| Product Height (in): | 3.11 |
| Maximum Drum Discard Diameter (mm): | 242.00 |
| Mounting Bolt Circle Diameter(mm): | 120.65 |
| Actual Weight (KG): | 7.000 |
| Actual Weight (lbs): | 15.43 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
