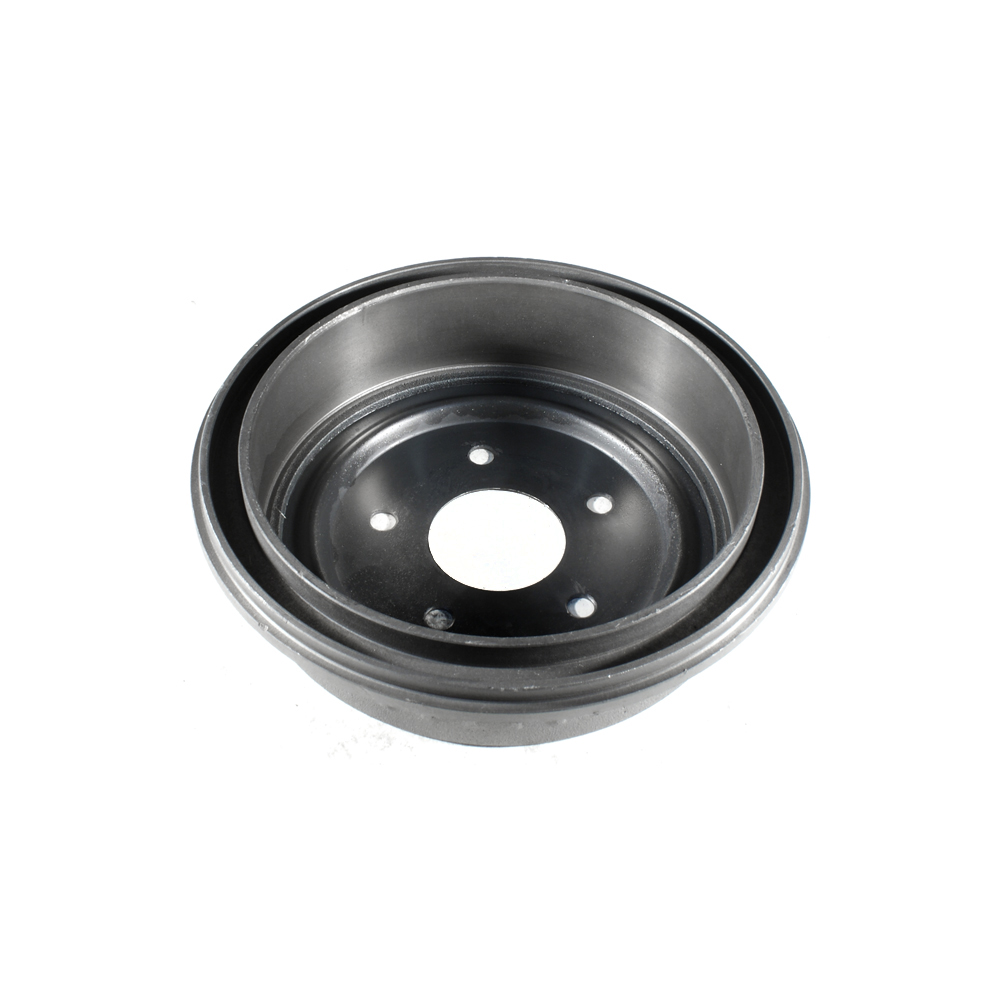

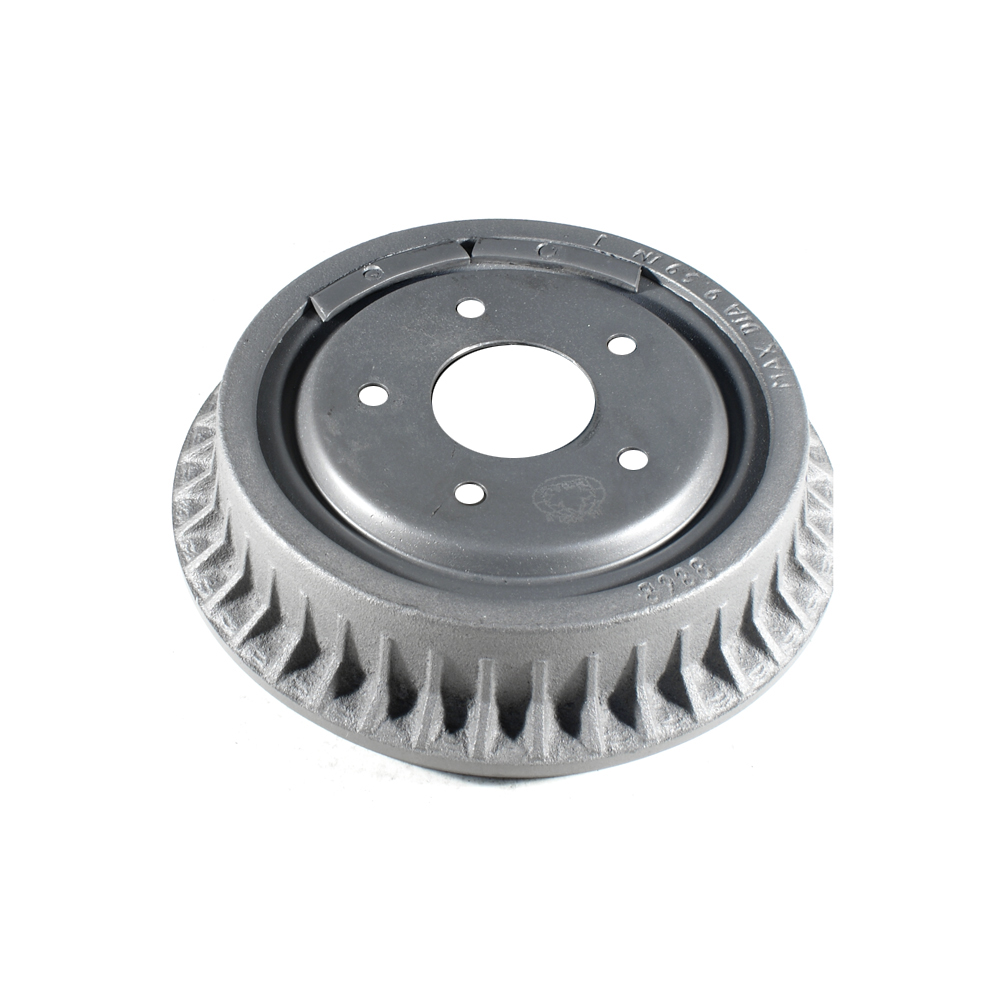

Click to EnlargeBrake Drum
$51.37 each
Raybestos: 2585
OE Number: 15693455
Product Number: BD8988
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
305mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.50 |
| Outside Diameter (mm): | 305.00 |
| Outside Diameter (in): | 12.01 |
| Inside Diameter (mm): | 241.30 |
| Inside Diameter (in): | 9.50 |
| Center Hole Diameter (mm): | 70.74 |
| Center Hole Diameter (in): | 2.79 |
| Product Depth (mm): | 77.20 |
| Product Depth (in): | 3.04 |
| Product Height (mm): | 81.00 |
| Product Height (in): | 3.19 |
| Maximum Drum Discard Diameter (mm): | 243.60 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 6.980 |
| Actual Weight (lbs): | 15.39 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
