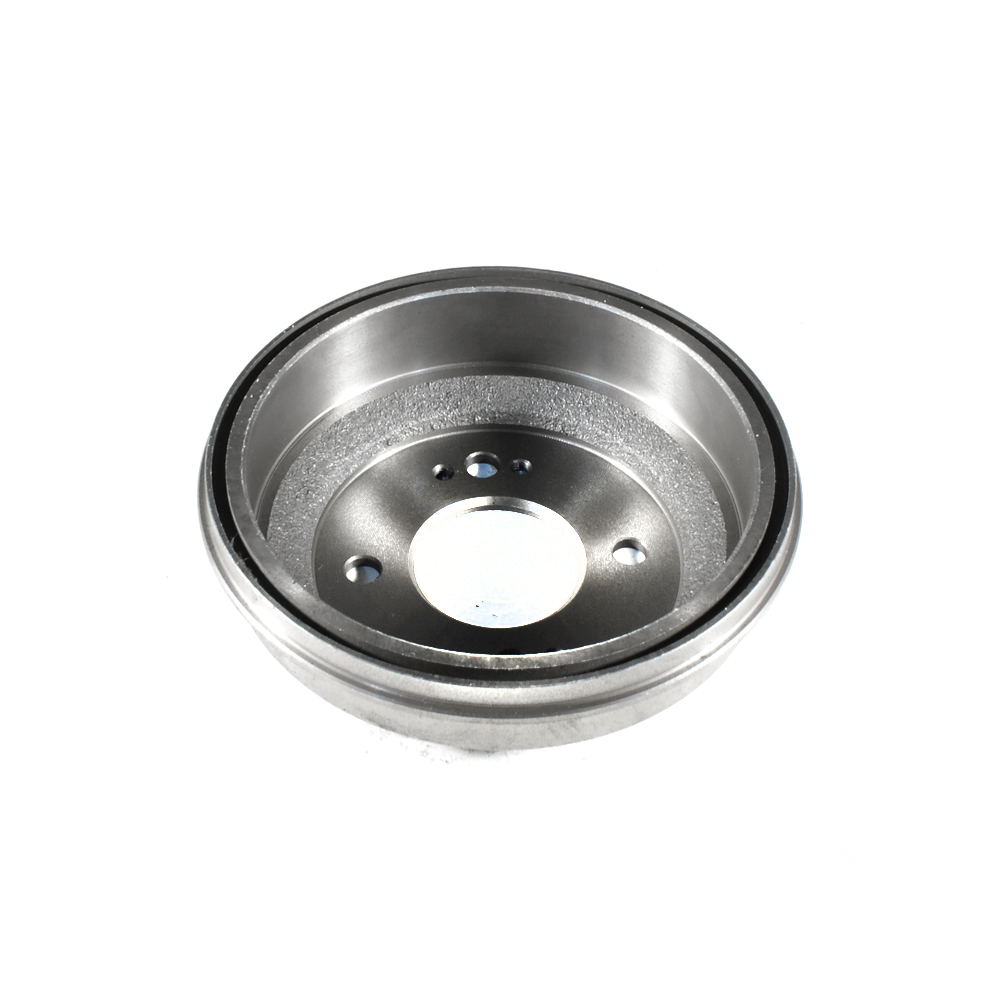

Click to EnlargeBrake Drum
$22.77 each
Raybestos: 9506
Product Number: BD3507
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
217mm
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 217.00 |
| Outside Diameter (in): | 8.54 |
| Inside Diameter (mm): | 180.00 |
| Inside Diameter (in): | 7.09 |
| Center Hole Diameter (mm): | 61.00 |
| Center Hole Diameter (in): | 2.40 |
| Product Depth (mm): | 55.80 |
| Product Depth (in): | 2.20 |
| Product Height (mm): | 62.00 |
| Product Height (in): | 2.44 |
| Maximum Drum Discard Diameter (mm): | 181.00 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 3.580 |
| Actual Weight (lbs): | 7.89 |
| Part Description: | Brake Drum |
| F/R: | Rear |
