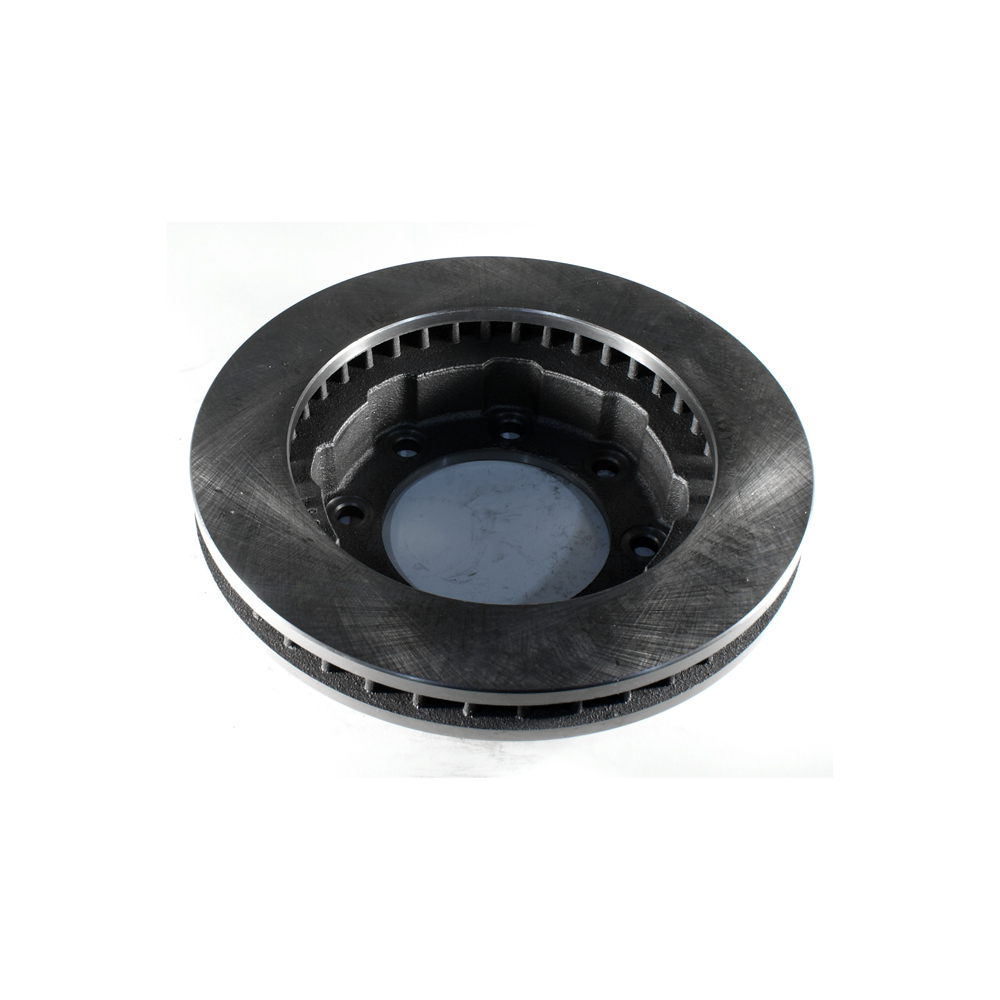

Click to EnlargeOEM Replacement Brake Rotor
$56.88 each
Raybestos: 5046
OE Number: 15635678
Product Number: BR5564
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
327mm, DRW
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 15.00 |
| Outside Diameter (mm): | 327.00 |
| Outside Diameter (in): | 12.87 |
| Inside Diameter (mm): | 224.00 |
| Inside Diameter (in): | 8.82 |
| Center Hole Diameter (mm): | 127.20 |
| Center Hole Diameter (in): | 5.01 |
| Product Height (mm): | 77.90 |
| Product Height (in): | 3.07 |
| Nominal Thickness (mm): | 39.00 |
| Nominal Thickness (in): | 1.54 |
| Discard Thickness (mm): | 37.20 |
| Discard Thickness (in): | 1.46 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Mounting Bolt Hole Circle Diameter (in): | 6.50 |
| Actual Weight (KG): | 12.100 |
| Actual Weight (lbs): | 26.67 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
