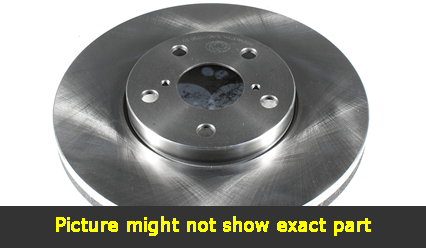

Click to EnlargeOEM Replacement Brake Rotor
$56.63 each
Raybestos: 5048
OE Number: 15635530
Product Number: BR5563
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
327mm, SRW
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 17.40 |
| Outside Diameter (mm): | 327.00 |
| Outside Diameter (in): | 12.87 |
| Inside Diameter (mm): | 223.80 |
| Inside Diameter (in): | 8.81 |
| Center Hole Diameter (mm): | 127.10 |
| Center Hole Diameter (in): | 5.00 |
| Product Height (mm): | 78.40 |
| Product Height (in): | 3.09 |
| Nominal Thickness (mm): | 39.00 |
| Nominal Thickness (in): | 1.54 |
| Discard Thickness (mm): | 37.20 |
| Discard Thickness (in): | 1.46 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Mounting Bolt Hole Circle Diameter (in): | 6.50 |
| Actual Weight (KG): | 12.550 |
| Actual Weight (lbs): | 27.67 |
| Part Description: | Brake Rotor |
| F/R: | Front |
