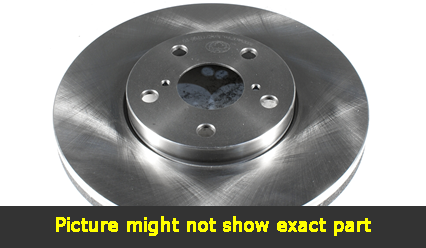

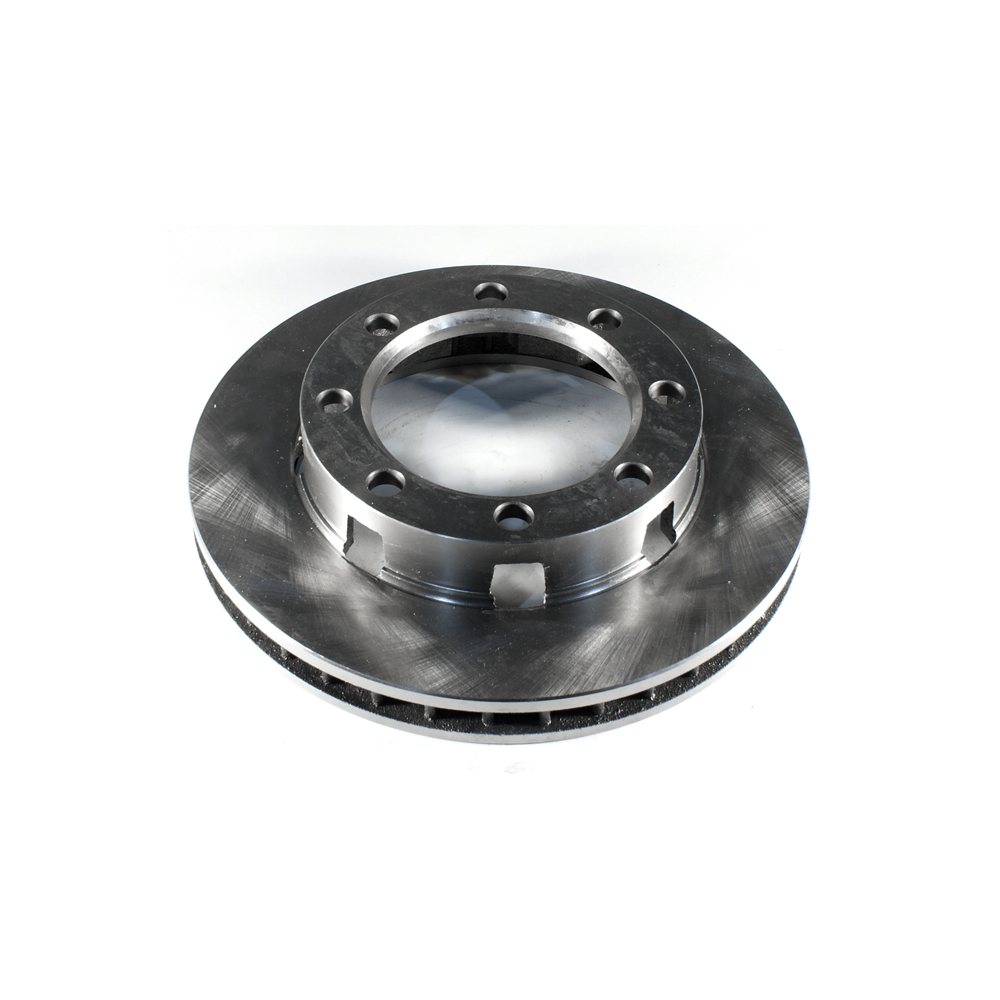

Click to EnlargeOEM Replacement Brake Rotor
$86.92 each
Raybestos: 5010
OE Number: 15674408
Product Number: BR5535
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
318mm dia, 121mm height
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 15.37 |
| Outside Diameter (mm): | 317.50 |
| Outside Diameter (in): | 12.50 |
| Inside Diameter (mm): | 211.10 |
| Inside Diameter (in): | 8.31 |
| Center Hole Diameter (mm): | 116.70 |
| Center Hole Diameter (in): | 4.59 |
| Product Height (mm): | 120.50 |
| Product Height (in): | 4.74 |
| Nominal Thickness (mm): | 32.64 |
| Nominal Thickness (in): | 1.29 |
| Discard Thickness (mm): | 30.86 |
| Discard Thickness (in): | 1.21 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Mounting Bolt Hole Circle Diameter (in): | 6.50 |
| Actual Weight (KG): | 16.600 |
| Actual Weight (lbs): | 36.59 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
