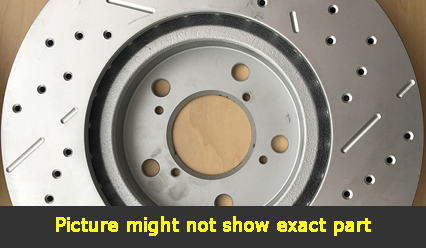

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$84.33 each
Raybestos: 980323
OE Number: 517123C100
Product Number: SP31384L
PRODUCT DESCRIPTION
Position: Front; Left Drilled, Slotted and Coated Brake Rotor
Brake Rotor
280mm, To 3/1/05
| Part Label: | Brake Rotor |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.60 |
| Outside Diameter (mm): | 280.00 |
| Outside Diameter (in): | 11.02 |
| Inside Diameter (mm): | 171.80 |
| Inside Diameter (in): | 6.76 |
| Center Hole Diameter (mm): | 69.00 |
| Center Hole Diameter (in): | 2.72 |
| Product Height (mm): | 47.30 |
| Product Height (in): | 1.86 |
| Nominal Thickness (mm): | 26.00 |
| Nominal Thickness (in): | 1.02 |
| Discard Thickness (mm): | 24.40 |
| Discard Thickness (in): | 0.96 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Mounting Bolt Hole Circle Diameter (in): | 4.50 |
| Actual Weight (KG): | 10.520 |
| Actual Weight (lbs): | 23.19 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Front Left |
