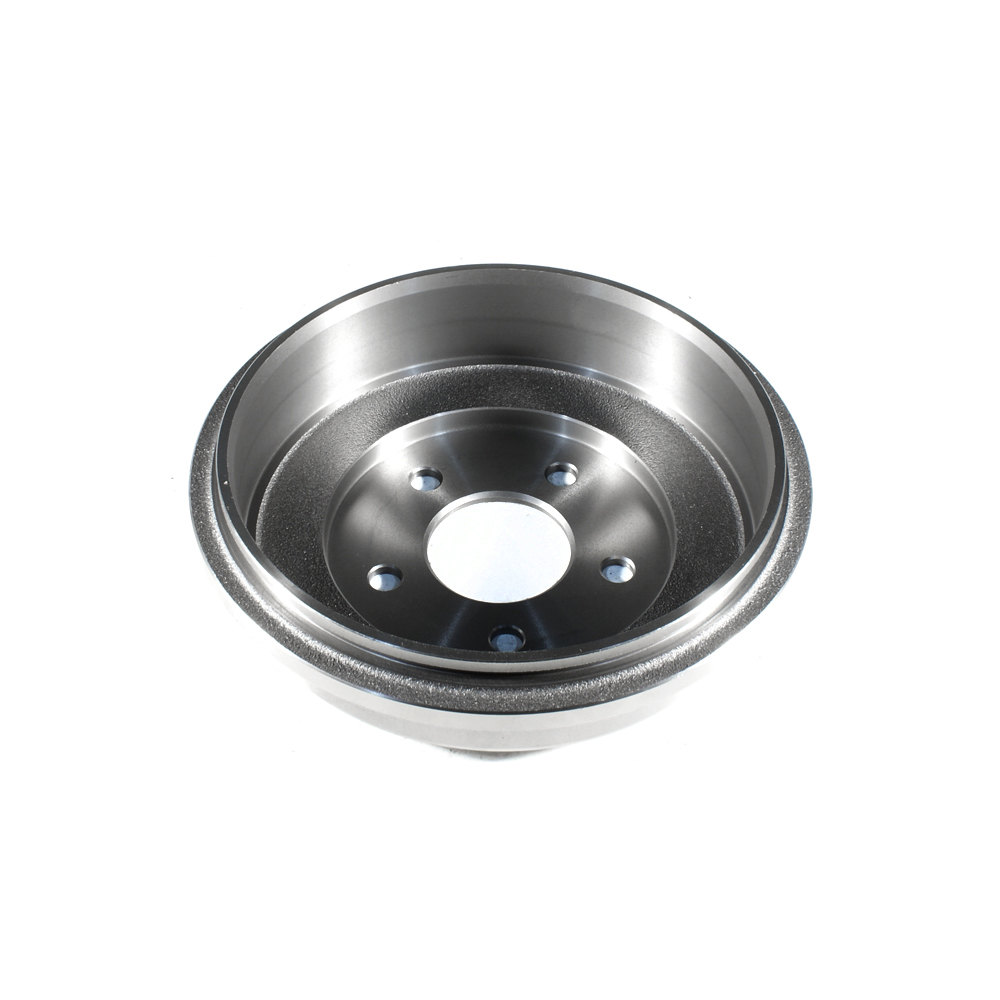

Click to EnlargeBrake Drum
$40.32 each
Raybestos: 9774
OE Number: 10388690
Product Number: BD80122
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
271mm, 5 Lug Wheel
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.30 |
| Outside Diameter (mm): | 271.00 |
| Outside Diameter (in): | 10.67 |
| Inside Diameter (mm): | 230.00 |
| Inside Diameter (in): | 9.06 |
| Center Hole Diameter (mm): | 65.50 |
| Center Hole Diameter (in): | 2.58 |
| Product Depth (mm): | 67.50 |
| Product Depth (in): | 2.66 |
| Product Height (mm): | 73.00 |
| Product Height (in): | 2.87 |
| Maximum Drum Discard Diameter (mm): | 231.00 |
| Mounting Bolt Circle Diameter(mm): | 110.00 |
| Actual Weight (KG): | 5.140 |
| Actual Weight (lbs): | 11.33 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
