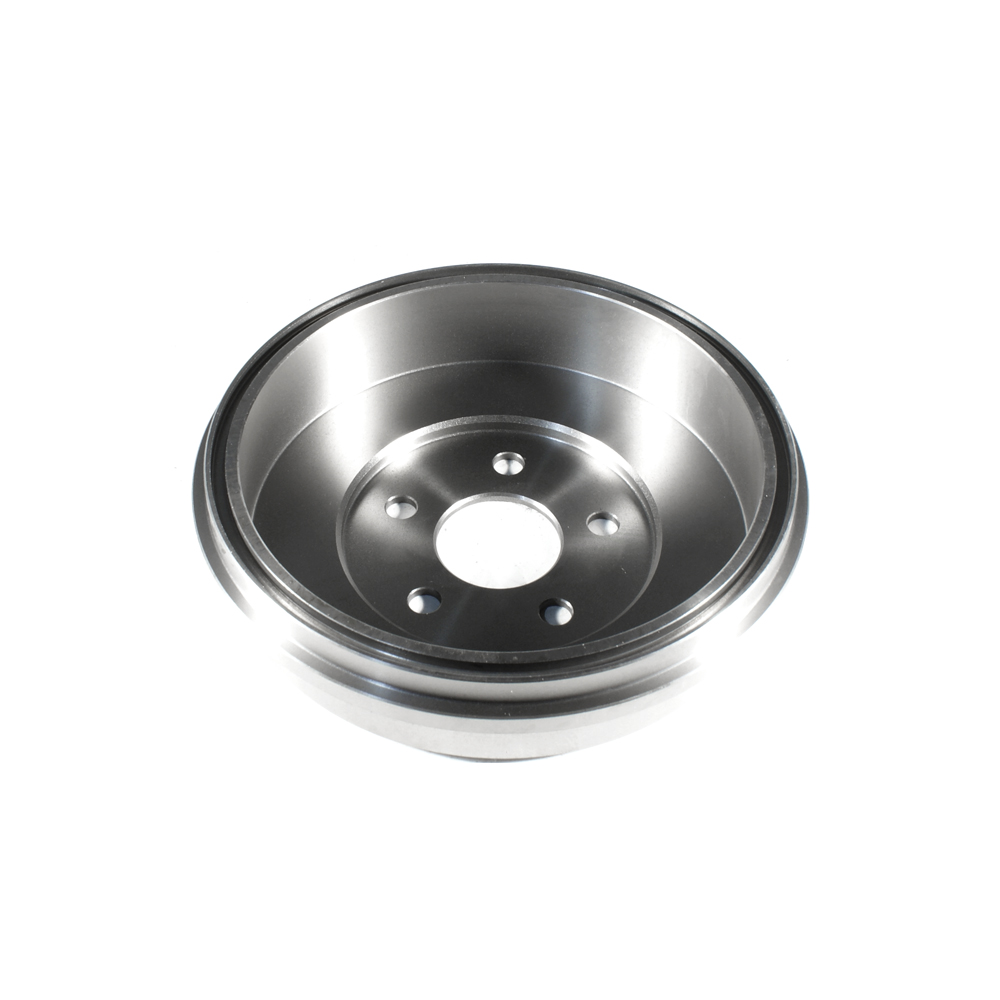

Click to EnlargeBrake Drum
$43.88 each
Raybestos: 9747
Product Number: BD80108
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
Sedan, Convertible
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.50 |
| Outside Diameter (mm): | 273.70 |
| Outside Diameter (in): | 10.78 |
| Inside Diameter (mm): | 228.50 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 57.50 |
| Center Hole Diameter (in): | 2.26 |
| Product Depth (mm): | 60.40 |
| Product Depth (in): | 2.38 |
| Product Height (mm): | 65.60 |
| Product Height (in): | 2.58 |
| Nominal Thickness (mm): | 228.50 |
| Nominal Thickness (in): | 9.00 |
| Discard Thickness (mm): | 230.60 |
| Discard Thickness (in): | 9.08 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 6.140 |
| Actual Weight (lbs): | 13.54 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
