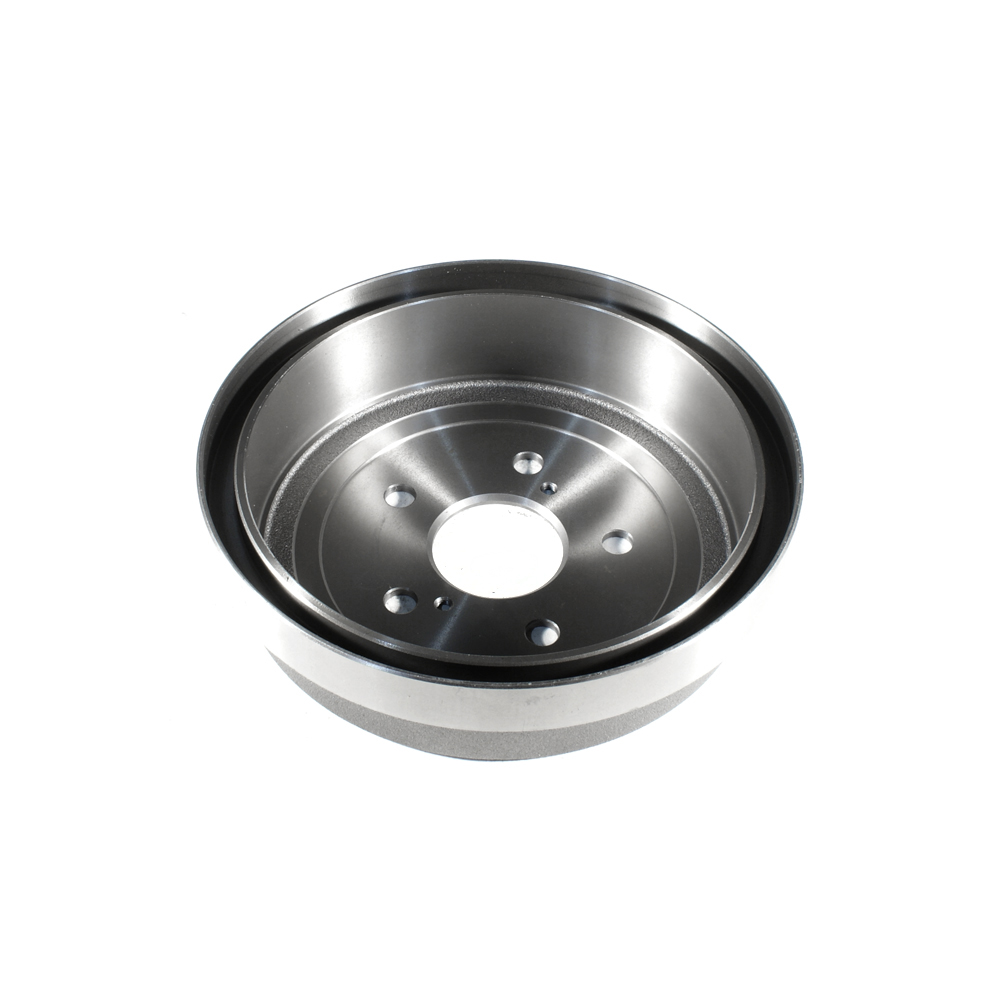

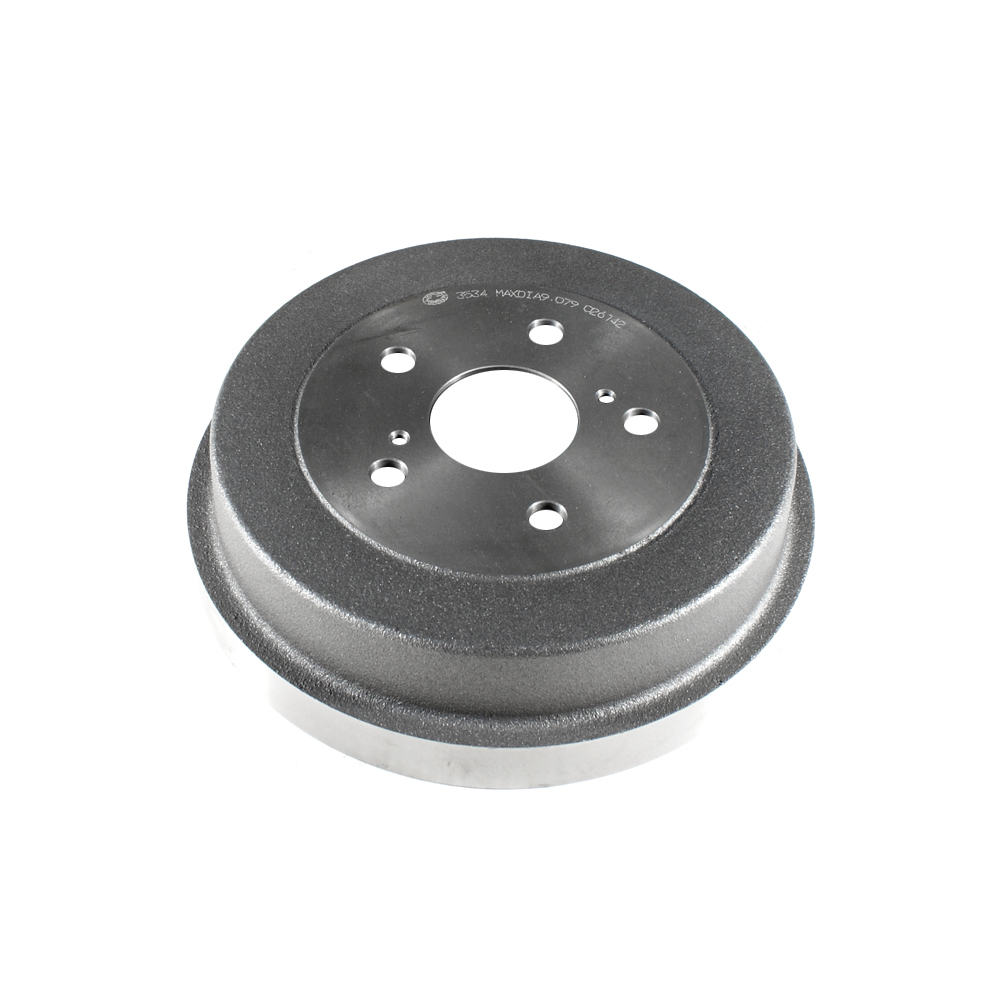

Click to EnlargeBrake Drum
$36.02 each
Raybestos: 9728
OE Number: 4243133020
Product Number: BD3534
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.60 |
| Outside Diameter (mm): | 272.00 |
| Outside Diameter (in): | 10.71 |
| Inside Diameter (mm): | 228.60 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 62.13 |
| Center Hole Diameter (in): | 2.45 |
| Product Depth (mm): | 66.00 |
| Product Depth (in): | 2.60 |
| Product Height (mm): | 72.00 |
| Product Height (in): | 2.83 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 5.210 |
| Actual Weight (lbs): | 11.49 |
| Part Description: | Brake Drum |
| F/R: | Rear |
