Click to EnlargeBrake Drum
$30.62 each
Raybestos: 9754
OE Number: 5841117200
Product Number: BD35104
PRODUCT DESCRIPTION
Position: Rear Brake Drum

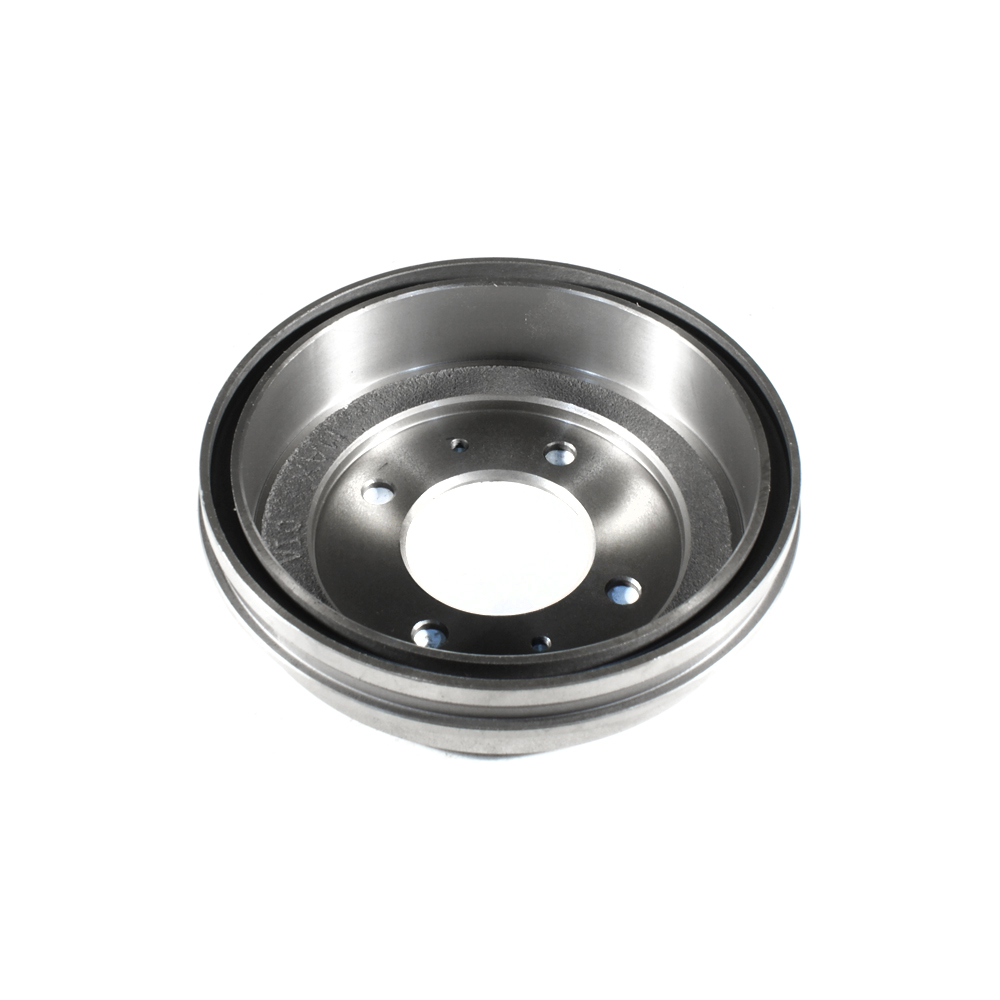

Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.70 |
| Outside Diameter (mm): | 243.00 |
| Outside Diameter (in): | 9.57 |
| Inside Diameter (mm): | 203.40 |
| Inside Diameter (in): | 8.01 |
| Center Hole Diameter (mm): | 76.20 |
| Center Hole Diameter (in): | 3.00 |
| Product Height (mm): | 59.00 |
| Product Height (in): | 2.32 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 4.400 |
| Actual Weight (lbs): | 9.7 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
