Click to EnlargeBrake Drum
$26.21 each
Raybestos: 9717
OE Number: 4351160G10
Product Number: BD35084
PRODUCT DESCRIPTION
Position: Rear Brake Drum

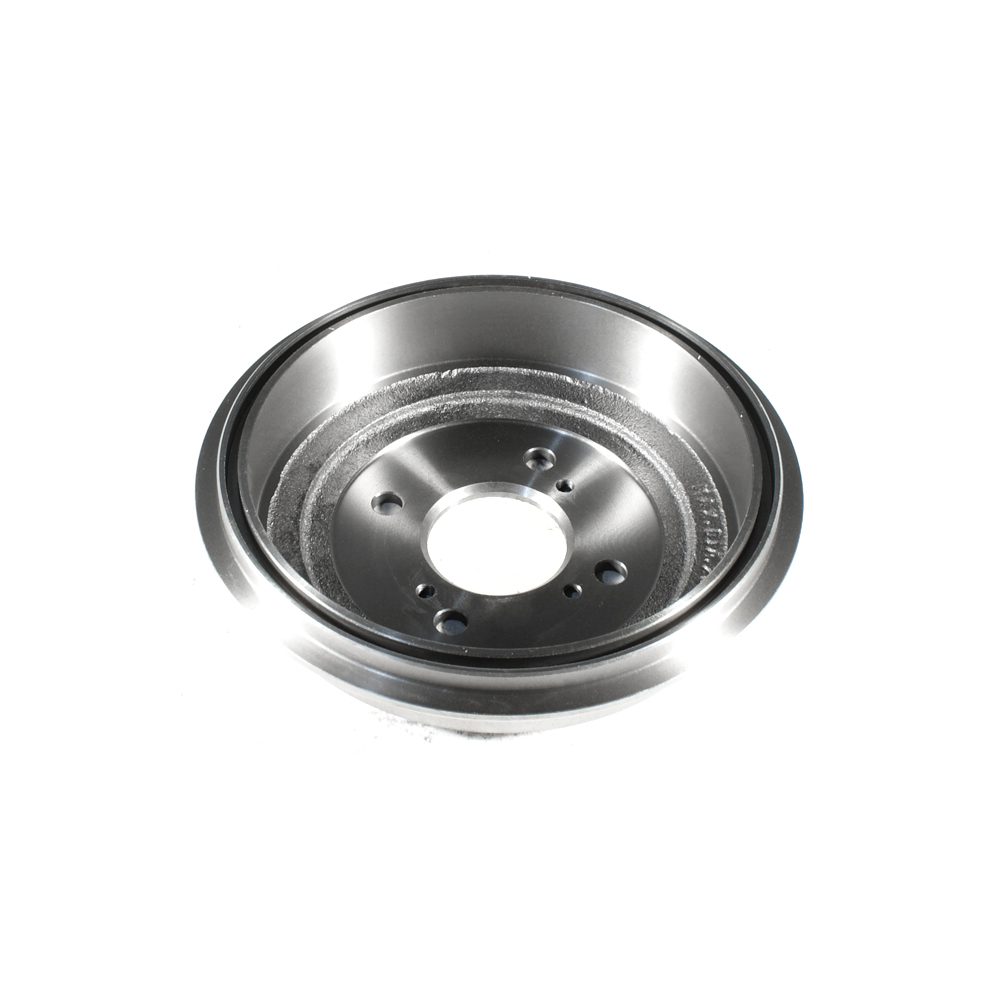

Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 244.60 |
| Outside Diameter (in): | 9.63 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 58.10 |
| Center Hole Diameter (in): | 2.29 |
| Product Depth (mm): | 49.50 |
| Product Depth (in): | 1.95 |
| Product Height (mm): | 56.30 |
| Product Height (in): | 2.22 |
| Nominal Thickness (mm): | 200.00 |
| Nominal Thickness (in): | 7.87 |
| Discard Thickness (mm): | 202.00 |
| Discard Thickness (in): | 7.95 |
| Maximum Drum Discard Diameter (mm): | 202.00 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 3.550 |
| Actual Weight (lbs): | 7.83 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
