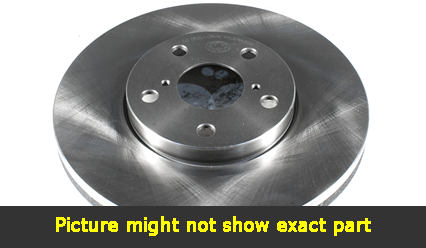

Click to EnlargeOEM Replacement Brake Rotor
$36.65 each
Raybestos: 96586
OE Number: JLM20341
Product Number: BR34053
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.60 |
| Outside Diameter (mm): | 291.20 |
| Outside Diameter (in): | 11.46 |
| Inside Diameter (mm): | 175.20 |
| Inside Diameter (in): | 6.90 |
| Center Hole Diameter (mm): | 80.00 |
| Center Hole Diameter (in): | 3.15 |
| Product Height (mm): | 67.00 |
| Product Height (in): | 2.64 |
| Nominal Thickness (mm): | 28.20 |
| Nominal Thickness (in): | 1.11 |
| Discard Thickness (mm): | 27.00 |
| Discard Thickness (in): | 1.06 |
| Mounting Bolt Circle Diameter(mm): | 120.65 |
| Mounting Bolt Hole Circle Diameter (in): | 4.75 |
| Actual Weight (KG): | 6.830 |
| Actual Weight (lbs): | 15.06 |
| Part Description: | Brake Rotor |
| F/R: | Front |
