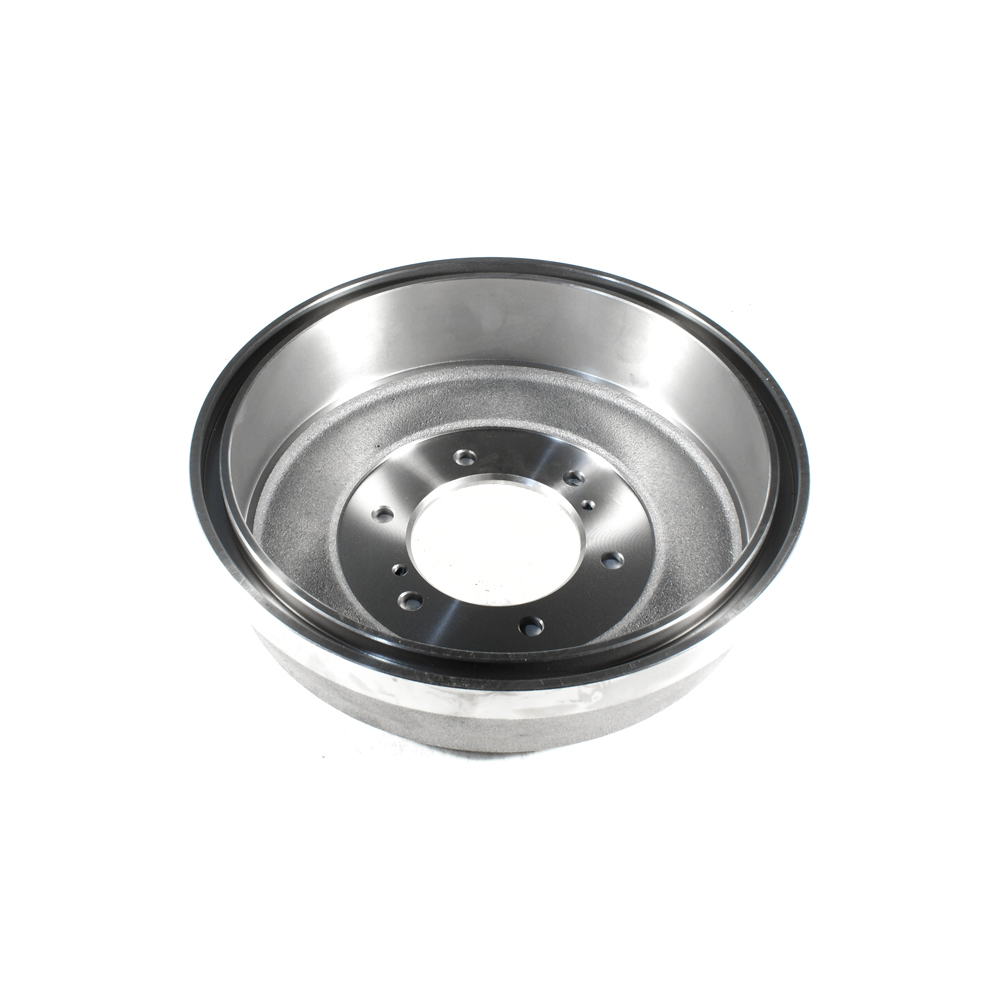

Click to EnlargeBrake Drum
$77.20 each
Raybestos: 9630
OE Number: 432060W710
Product Number: BD35019
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
341mm
| Part Label: | Brake Drum |
| Bolt Holes: | 6 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 341.00 |
| Outside Diameter (in): | 13.43 |
| Inside Diameter (mm): | 295.00 |
| Inside Diameter (in): | 11.61 |
| Center Hole Diameter (mm): | 100.50 |
| Center Hole Diameter (in): | 3.96 |
| Product Depth (mm): | 81.20 |
| Product Depth (in): | 3.20 |
| Product Height (mm): | 88.00 |
| Product Height (in): | 3.46 |
| Maximum Drum Discard Diameter (mm): | 296.50 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 11.740 |
| Actual Weight (lbs): | 25.88 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
