Click to Enlarge

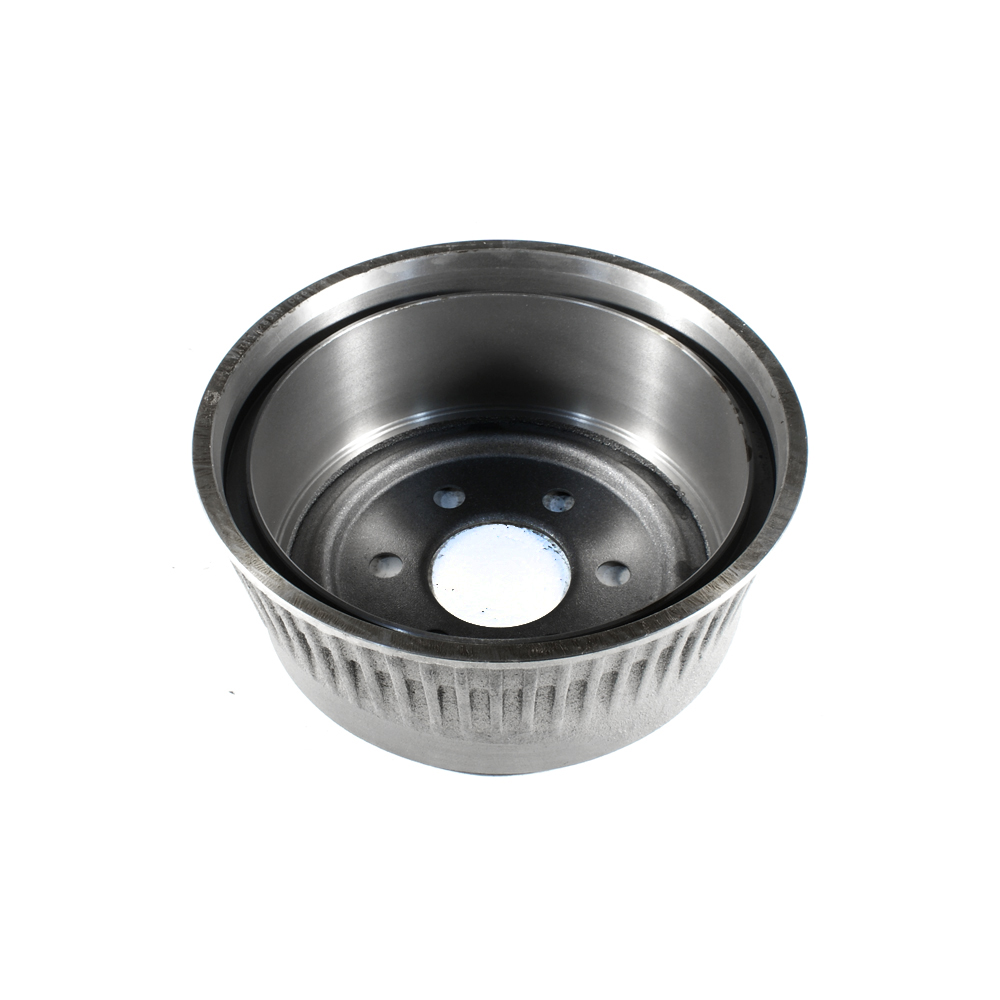

Click to EnlargeBrake Drum
$51.64 each
Raybestos: 2988
OE Number: 52006290
Product Number: BD8992
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
280mm
| Part Label: | Brake Drum |
| Bolt Holes: | 6 |
| Bolt Hole Diameter (mm): | 16.60 |
| Outside Diameter (mm): | 280.00 |
| Outside Diameter (in): | 11.02 |
| Inside Diameter (mm): | 228.50 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 72.10 |
| Center Hole Diameter (in): | 2.84 |
| Product Depth (mm): | 101.00 |
| Product Depth (in): | 3.98 |
| Product Height (mm): | 105.00 |
| Product Height (in): | 4.13 |
| Maximum Drum Discard Diameter (mm): | 230.00 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 6.800 |
| Actual Weight (lbs): | 14.99 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
