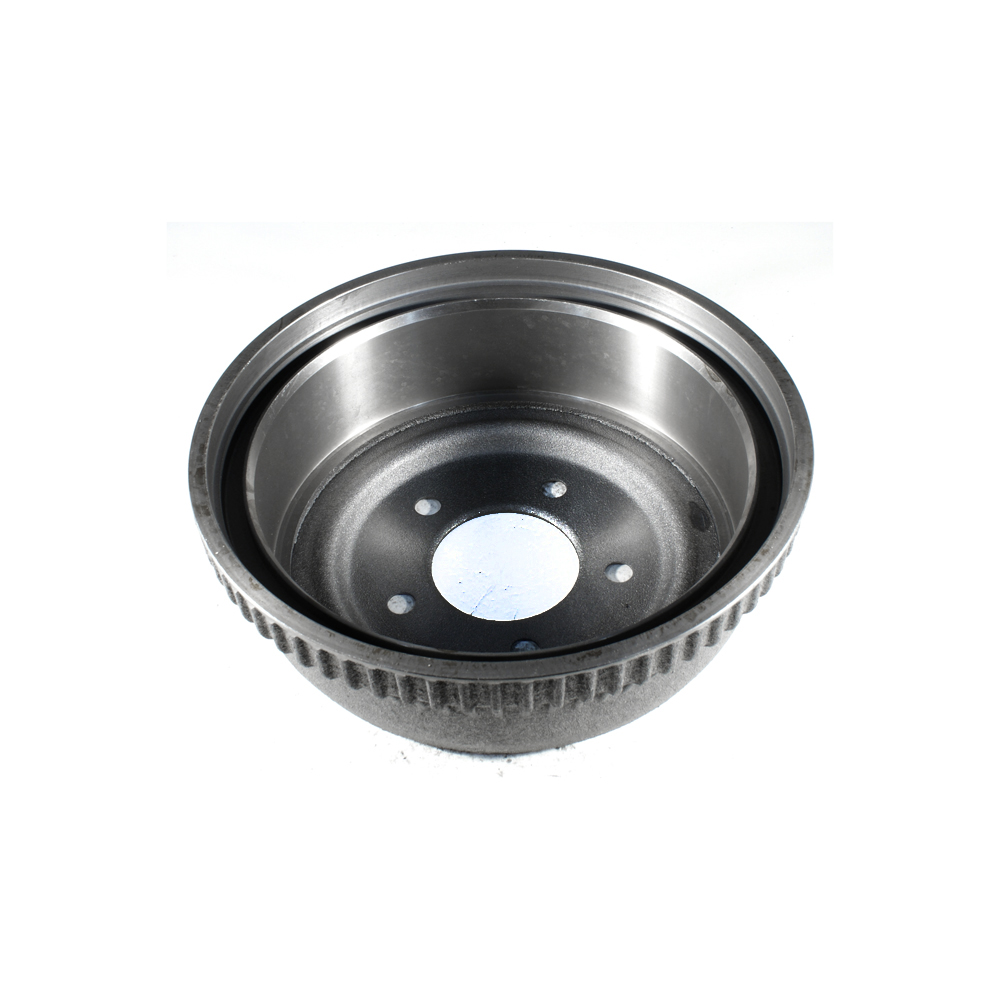

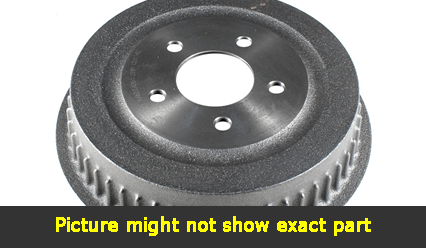

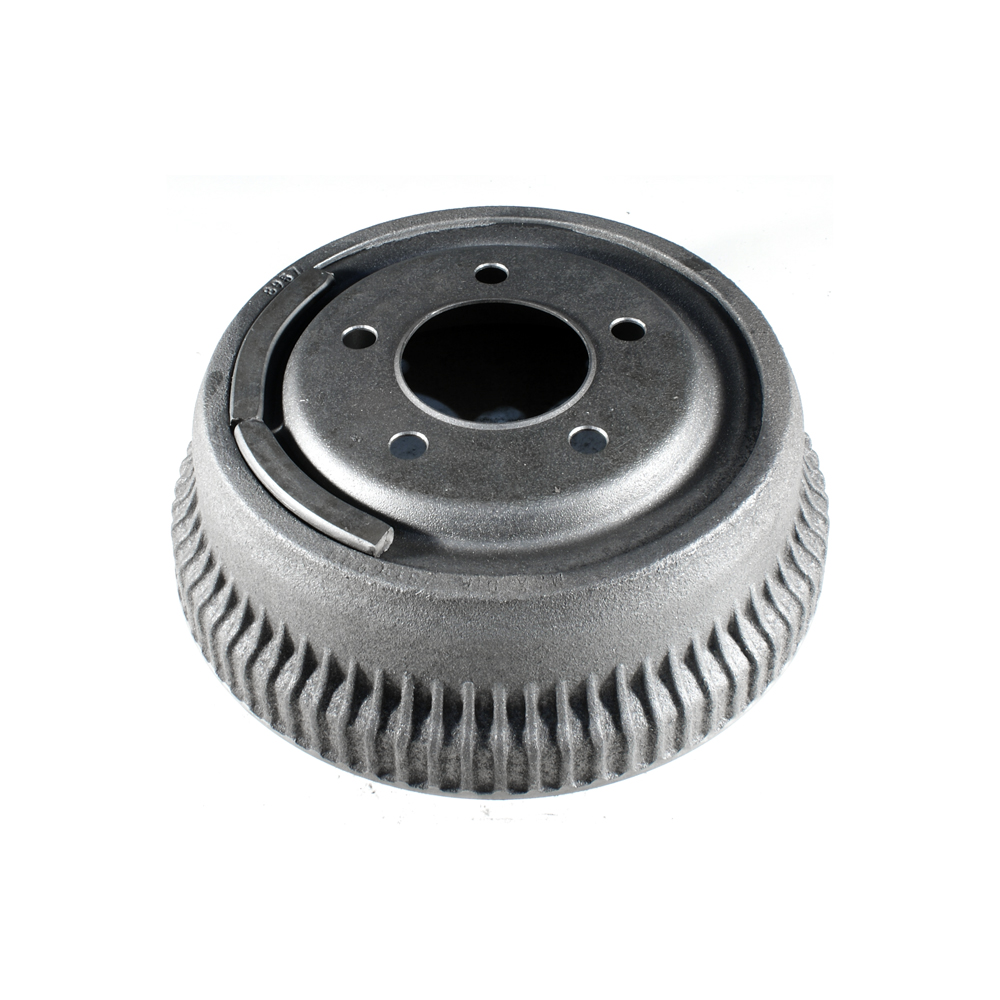

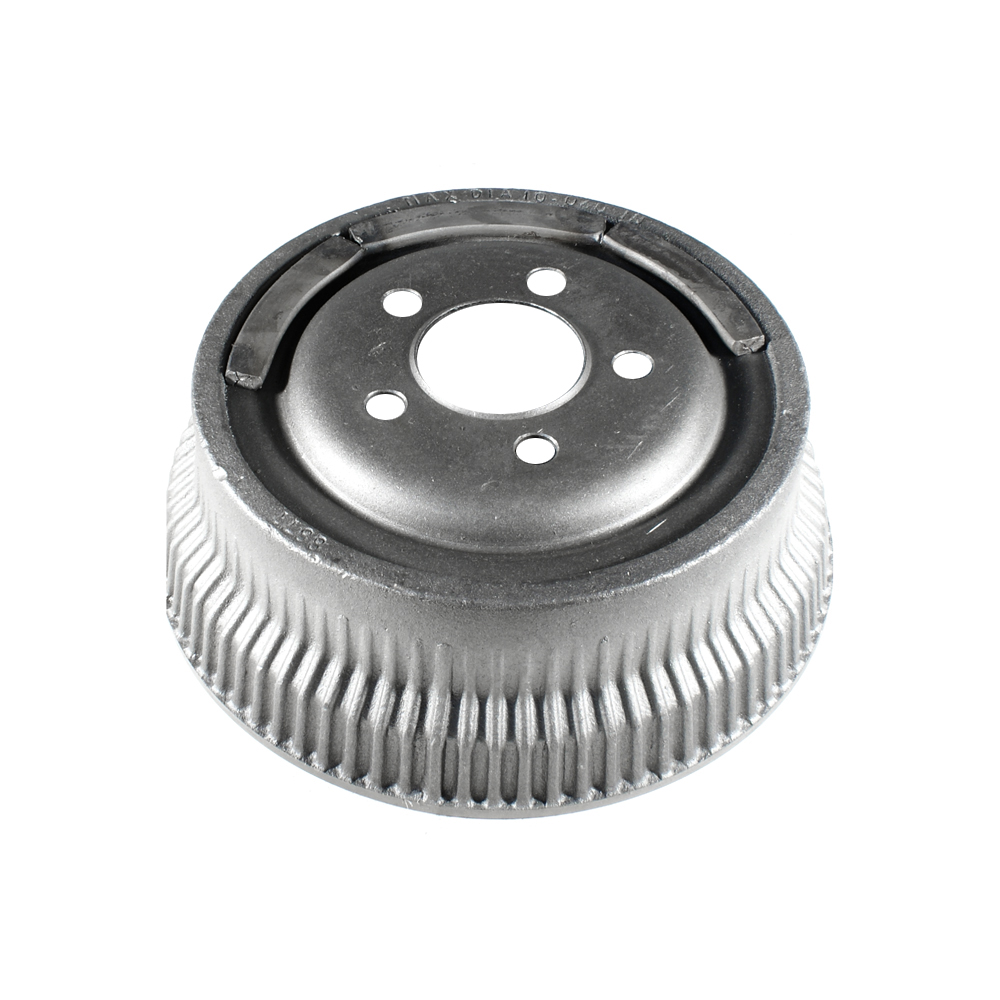

Click to EnlargeBrake Drum
$81.56 each
Raybestos: 2905
OE Number: 4238865
Product Number: BD8957
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
346mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 16.75 |
| Outside Diameter (mm): | 346.00 |
| Outside Diameter (in): | 13.62 |
| Inside Diameter (mm): | 279.40 |
| Inside Diameter (in): | 11.00 |
| Center Hole Diameter (mm): | 90.68 |
| Center Hole Diameter (in): | 3.57 |
| Product Depth (mm): | 80.80 |
| Product Depth (in): | 3.18 |
| Product Height (mm): | 116.00 |
| Product Height (in): | 4.57 |
| Maximum Drum Discard Diameter (mm): | 281.69 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 13.000 |
| Actual Weight (lbs): | 28.66 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
