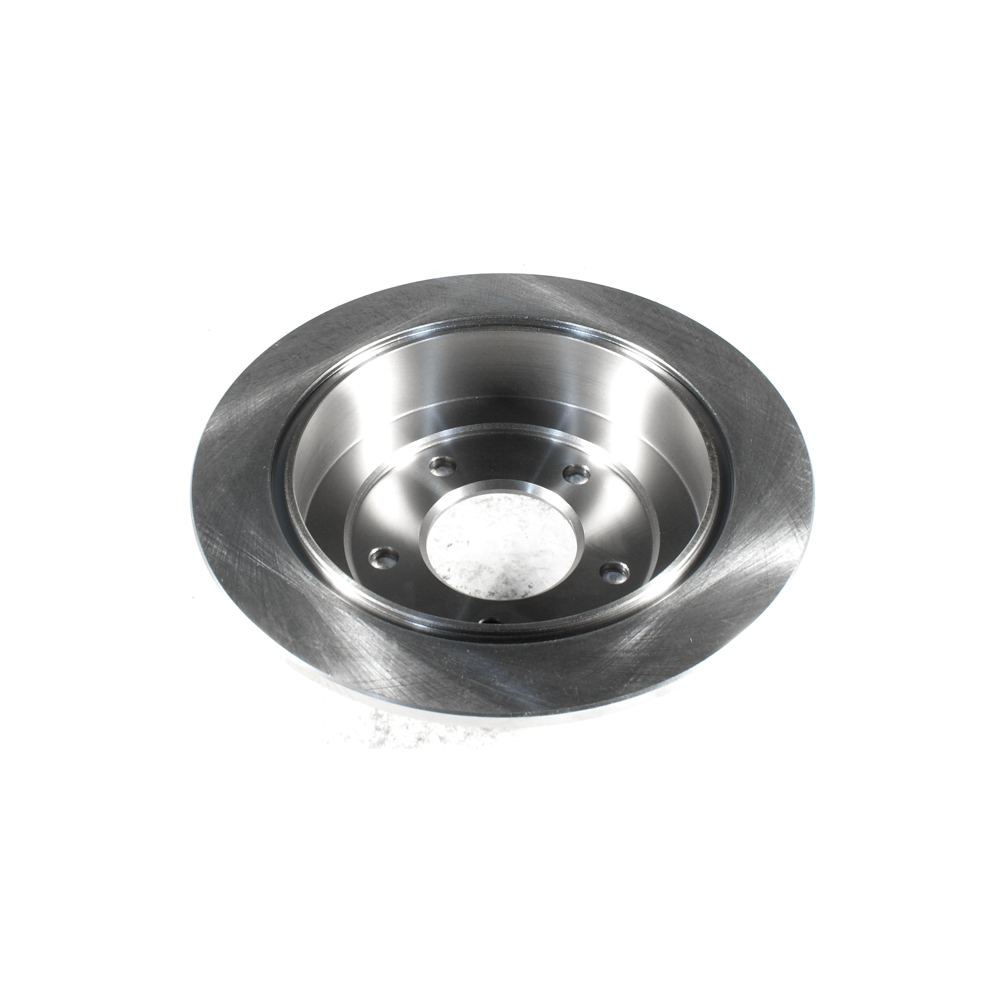

Click to EnlargeOEM Replacement Brake Rotor
$28.03 each
Raybestos: 96649
OE Number: TY3226251A
Product Number: BR31228
PRODUCT DESCRIPTION
Position: Rear OEM Replacement Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.10 |
| Outside Diameter (mm): | 285.80 |
| Outside Diameter (in): | 11.25 |
| Center Hole Diameter (mm): | 72.10 |
| Center Hole Diameter (in): | 2.84 |
| Product Height (mm): | 56.50 |
| Product Height (in): | 2.22 |
| Nominal Thickness (mm): | 9.60 |
| Nominal Thickness (in): | 0.38 |
| Discard Thickness (mm): | 7.60 |
| Discard Thickness (in): | 0.30 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Mounting Bolt Hole Circle Diameter (in): | 4.50 |
| Actual Weight (KG): | 4.470 |
| Actual Weight (lbs): | 9.85 |
| Part Description: | Brake Rotor |
| F/R: | Rear |
