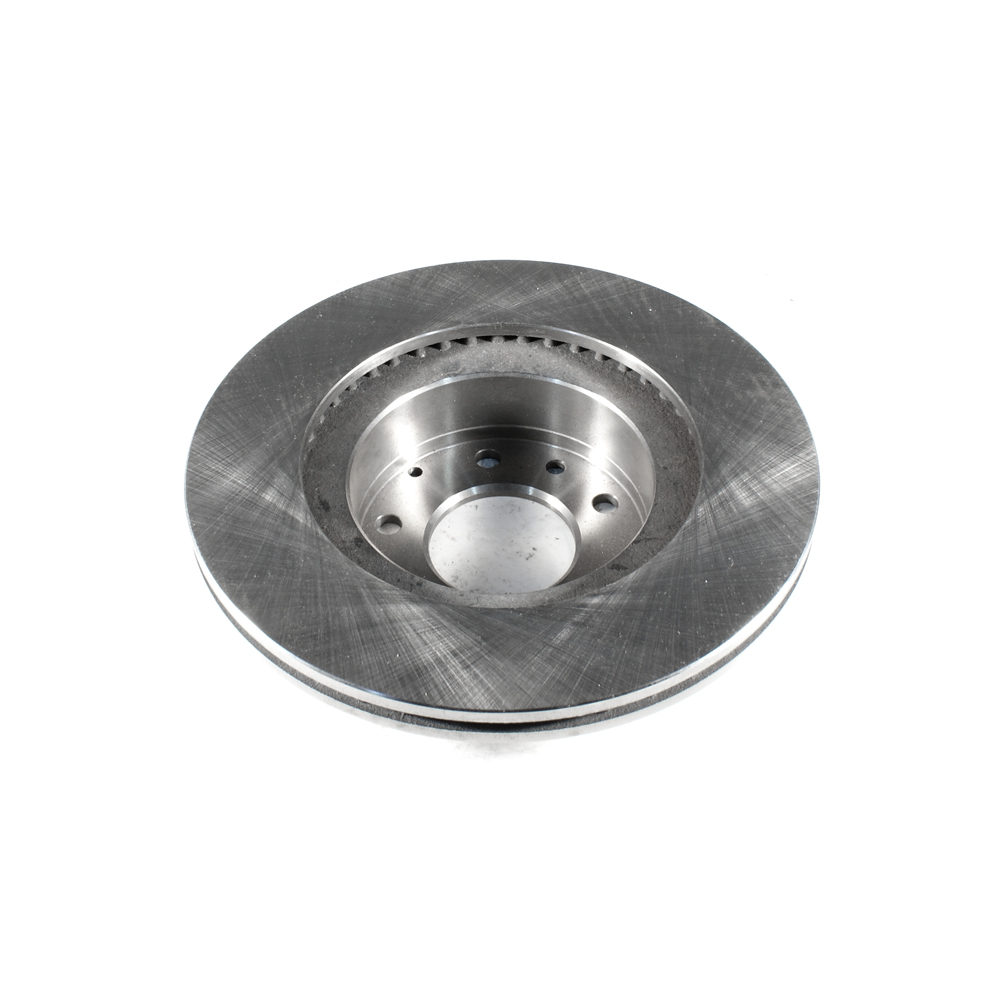

Click to EnlargeOEM Replacement Brake Rotor
$40.81 each
Raybestos: 96322
OE Number: F1003325X
Product Number: BR31203
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.10 |
| Outside Diameter (mm): | 293.70 |
| Outside Diameter (in): | 11.56 |
| Inside Diameter (mm): | 185.80 |
| Inside Diameter (in): | 7.31 |
| Center Hole Diameter (mm): | 72.00 |
| Center Hole Diameter (in): | 2.83 |
| Product Height (mm): | 67.00 |
| Product Height (in): | 2.64 |
| Nominal Thickness (mm): | 22.00 |
| Nominal Thickness (in): | 0.87 |
| Discard Thickness (mm): | 20.00 |
| Discard Thickness (in): | 0.79 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Mounting Bolt Hole Circle Diameter (in): | 4.50 |
| Actual Weight (KG): | 7.000 |
| Actual Weight (lbs): | 15.43 |
| Part Description: | Brake Rotor |
| F/R: | Front |
