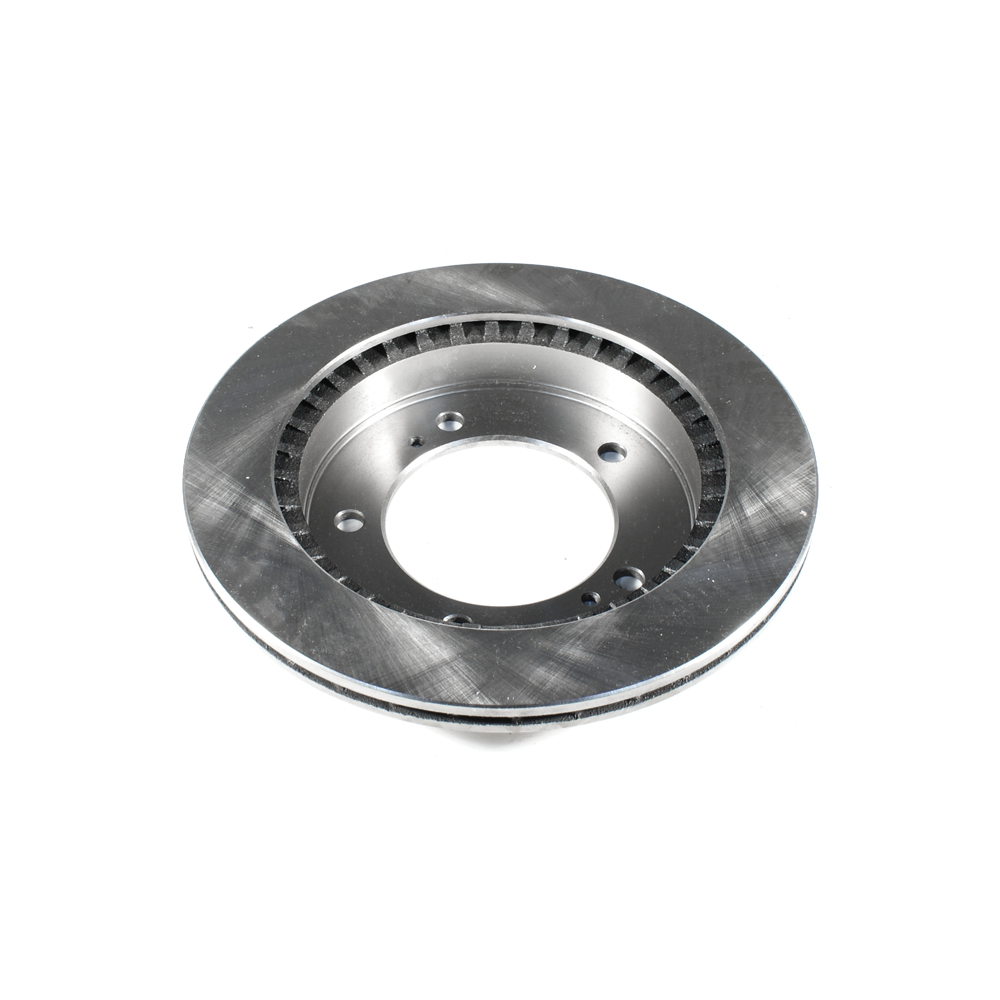

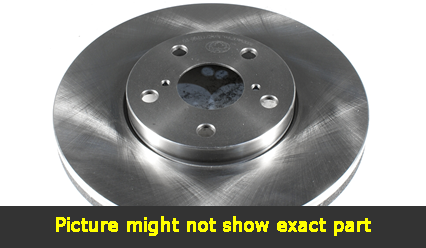

Click to EnlargeOEM Replacement Brake Rotor
$21.98 each
Raybestos: 96257
OE Number: 5521156B00
Product Number: BR31177
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
287mm
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 287.00 |
| Outside Diameter (in): | 11.30 |
| Inside Diameter (mm): | 204.80 |
| Inside Diameter (in): | 8.06 |
| Center Hole Diameter (mm): | 107.10 |
| Center Hole Diameter (in): | 4.22 |
| Product Height (mm): | 46.20 |
| Product Height (in): | 1.82 |
| Nominal Thickness (mm): | 17.00 |
| Nominal Thickness (in): | 0.67 |
| Discard Thickness (mm): | 15.00 |
| Discard Thickness (in): | 0.59 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Mounting Bolt Hole Circle Diameter (in): | 5.50 |
| Actual Weight (KG): | 4.340 |
| Actual Weight (lbs): | 9.57 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
