Click to EnlargeOEM Replacement Brake Rotor
$21.87 each
Raybestos: 96464
OE Number: NA753325X
Product Number: BR31159
PRODUCT DESCRIPTION

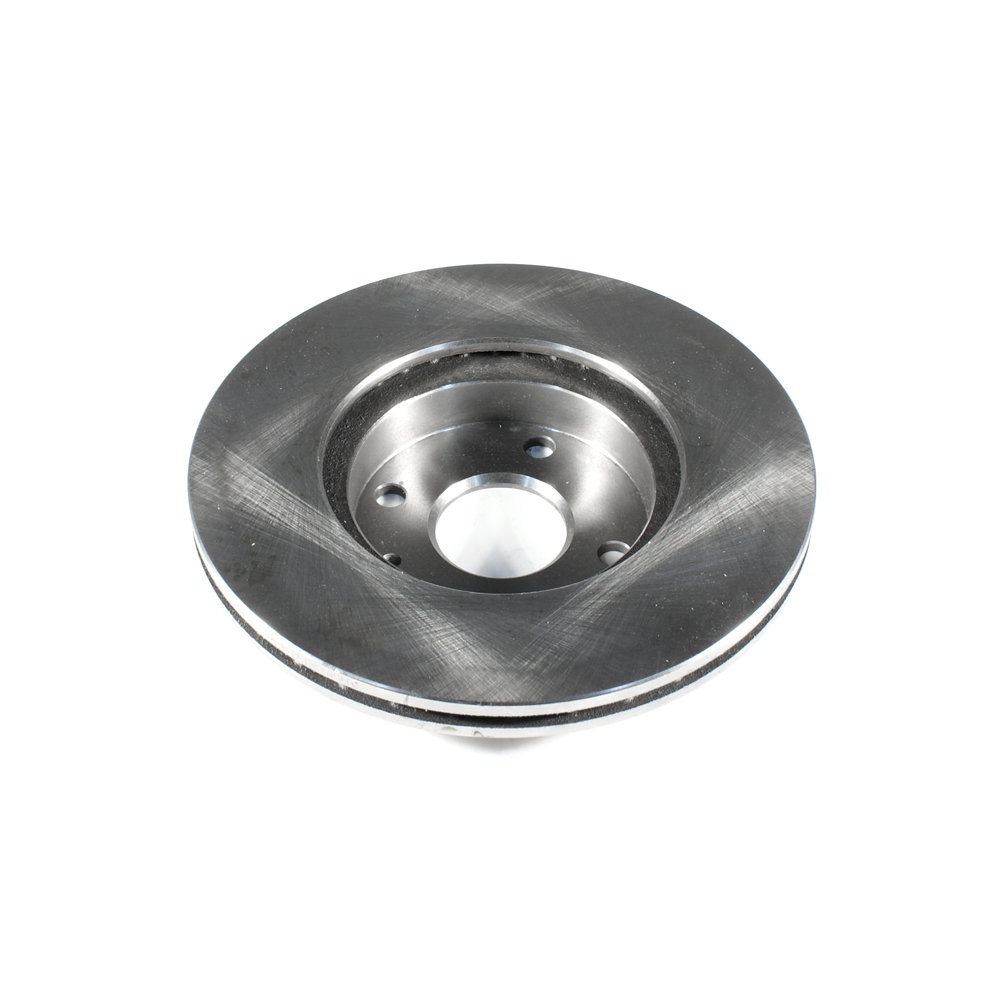

Position: Front OEM Replacement Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.90 |
| Outside Diameter (mm): | 254.60 |
| Outside Diameter (in): | 10.02 |
| Inside Diameter (mm): | 145.80 |
| Inside Diameter (in): | 5.74 |
| Center Hole Diameter (mm): | 55.10 |
| Center Hole Diameter (in): | 2.17 |
| Product Height (mm): | 44.90 |
| Product Height (in): | 1.77 |
| Nominal Thickness (mm): | 19.86 |
| Nominal Thickness (in): | 0.78 |
| Discard Thickness (mm): | 18.00 |
| Discard Thickness (in): | 0.71 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Mounting Bolt Hole Circle Diameter (in): | 3.94 |
| Actual Weight (KG): | 4.480 |
| Actual Weight (lbs): | 9.88 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
