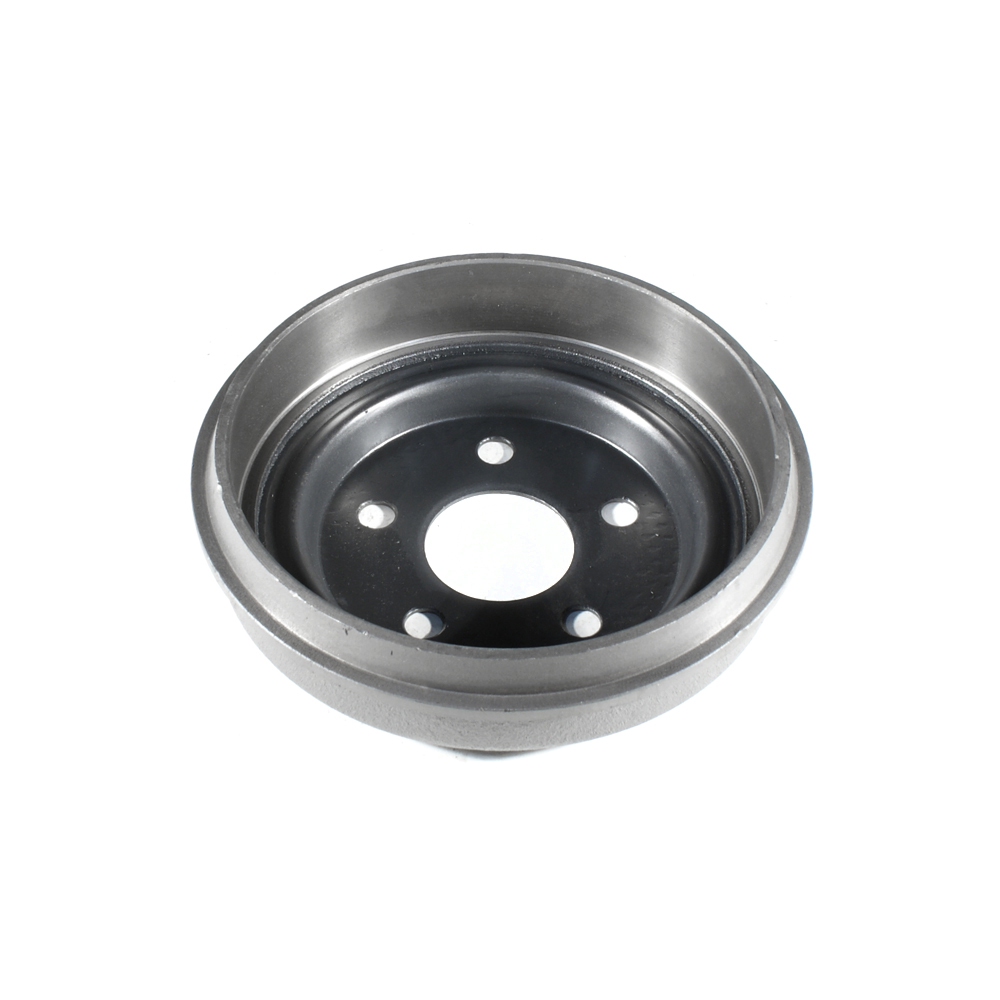

Click to EnlargeBrake Drum
$24.03 each
Raybestos: 2913
OE Number: 4383655
Product Number: BD8947
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
232mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.00 |
| Outside Diameter (mm): | 232.00 |
| Outside Diameter (in): | 9.13 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 57.50 |
| Center Hole Diameter (in): | 2.26 |
| Product Depth (mm): | 57.80 |
| Product Depth (in): | 2.28 |
| Product Height (mm): | 62.00 |
| Product Height (in): | 2.44 |
| Maximum Drum Discard Diameter (mm): | 201.17 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 3.100 |
| Actual Weight (lbs): | 6.83 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
