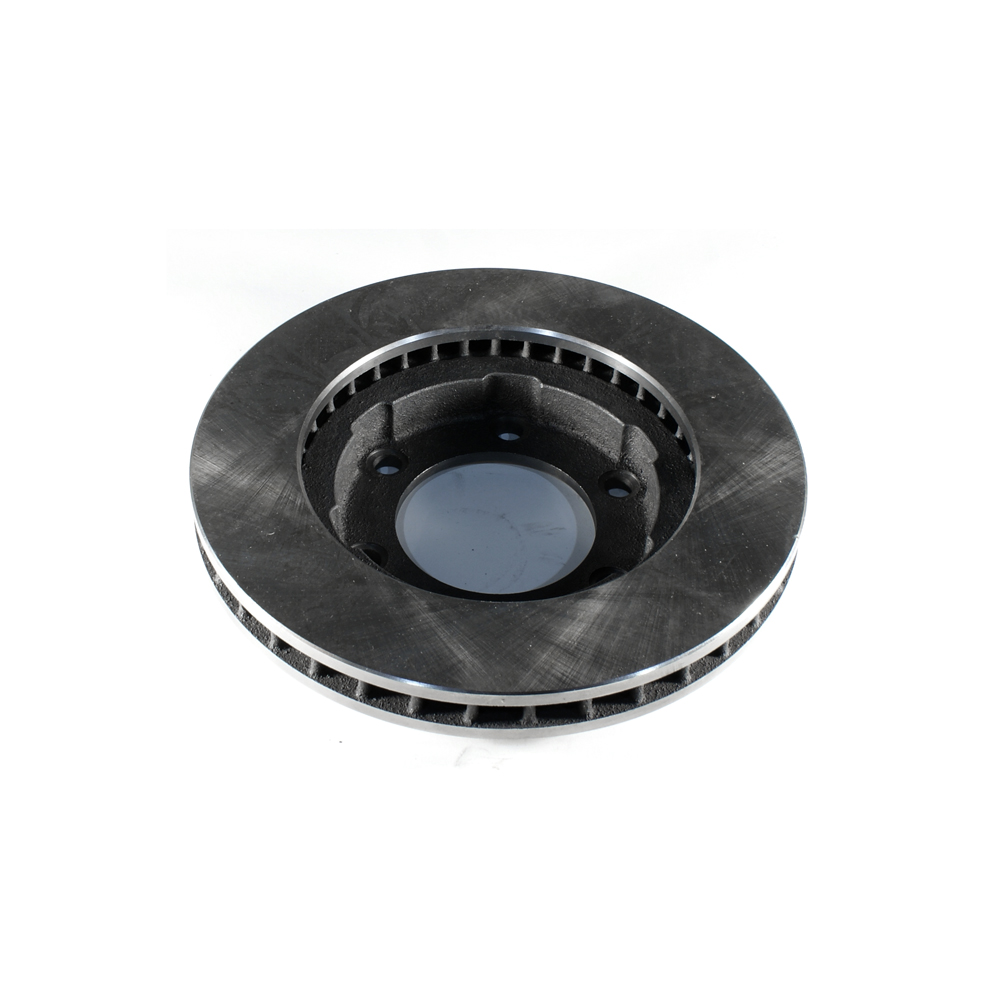

Click to EnlargeOEM Replacement Brake Rotor
$40.46 each
Raybestos: 5020
OE Number: 14026765
Product Number: BR5522
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
301mm dia, 59mm height
| Part Label: | Brake Rotor |
| Bolt Holes: | 6 |
| Bolt Hole Diameter (mm): | 15.10 |
| Outside Diameter (mm): | 301.00 |
| Outside Diameter (in): | 11.85 |
| Inside Diameter (mm): | 192.00 |
| Inside Diameter (in): | 7.56 |
| Center Hole Diameter (mm): | 101.65 |
| Center Hole Diameter (in): | 4.00 |
| Product Height (mm): | 58.80 |
| Product Height (in): | 2.31 |
| Nominal Thickness (mm): | 32.89 |
| Nominal Thickness (in): | 1.29 |
| Discard Thickness (mm): | 30.86 |
| Discard Thickness (in): | 1.21 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Mounting Bolt Hole Circle Diameter (in): | 5.50 |
| Actual Weight (KG): | 8.660 |
| Actual Weight (lbs): | 19.09 |
| Part Description: | Brake Rotor |
| F/R: | Front |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
