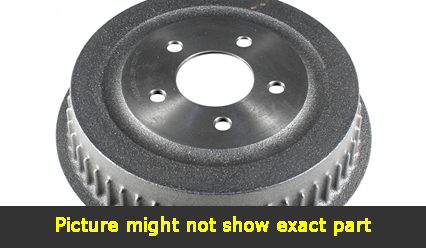

Click to EnlargeBrake Drum
$87.19 each
Raybestos: 1961
OE Number: 3496560
Product Number: BD8892
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
357mm
| Part Label: | Brake Drum |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 17.60 |
| Outside Diameter (mm): | 357.00 |
| Outside Diameter (in): | 14.06 |
| Inside Diameter (mm): | 304.90 |
| Inside Diameter (in): | 12.00 |
| Center Hole Diameter (mm): | 132.00 |
| Center Hole Diameter (in): | 5.20 |
| Product Depth (mm): | 151.90 |
| Product Depth (in): | 5.98 |
| Product Height (mm): | 160.00 |
| Product Height (in): | 6.30 |
| Maximum Drum Discard Diameter (mm): | 307.00 |
| Mounting Bolt Circle Diameter(mm): | 156.10 |
| Actual Weight (KG): | 20.000 |
| Actual Weight (lbs): | 44.09 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
