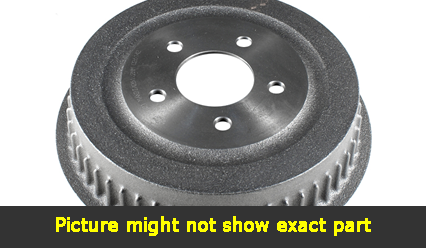

Click to EnlargeBrake Drum
$33.68 each
Raybestos: 9355
Product Number: BD3514
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 12.00 |
| Outside Diameter (mm): | 262.00 |
| Outside Diameter (in): | 10.31 |
| Center Hole Diameter (mm): | 50.00 |
| Center Hole Diameter (in): | 1.97 |
| Product Height (mm): | 61.00 |
| Product Height (in): | 2.40 |
| Nominal Thickness (mm): | 220.00 |
| Nominal Thickness (in): | 8.66 |
| Discard Thickness (mm): | 222.00 |
| Discard Thickness (in): | 8.74 |
| Maximum Drum Diameter(mm): | 220.00 |
| Maximum Drum Discard Diameter (mm): | 222.00 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
