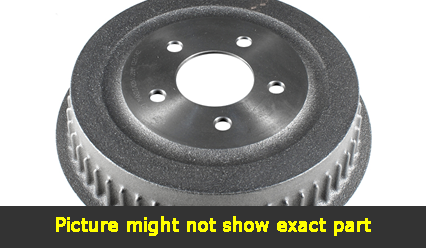

Click to EnlargeBrake Drum
$42.30 each
Raybestos: 9556
OE Number: 1H0-501-615A
Product Number: BD3829
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.00 |
| Outside Diameter (mm): | 239.30 |
| Outside Diameter (in): | 9.42 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 56.90 |
| Center Hole Diameter (in): | 2.24 |
| Product Depth (mm): | 40.00 |
| Product Depth (in): | 1.57 |
| Product Height (mm): | 81.50 |
| Product Height (in): | 3.21 |
| Nominal Thickness (mm): | 200.00 |
| Nominal Thickness (in): | 7.87 |
| Discard Thickness (mm): | 201.50 |
| Discard Thickness (in): | 7.93 |
| Maximum Drum Discard Diameter (mm): | 201.50 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 5.800 |
| Actual Weight (lbs): | 12.79 |
| Part Description: | Brake Drum |
| F/R: | Rear |
