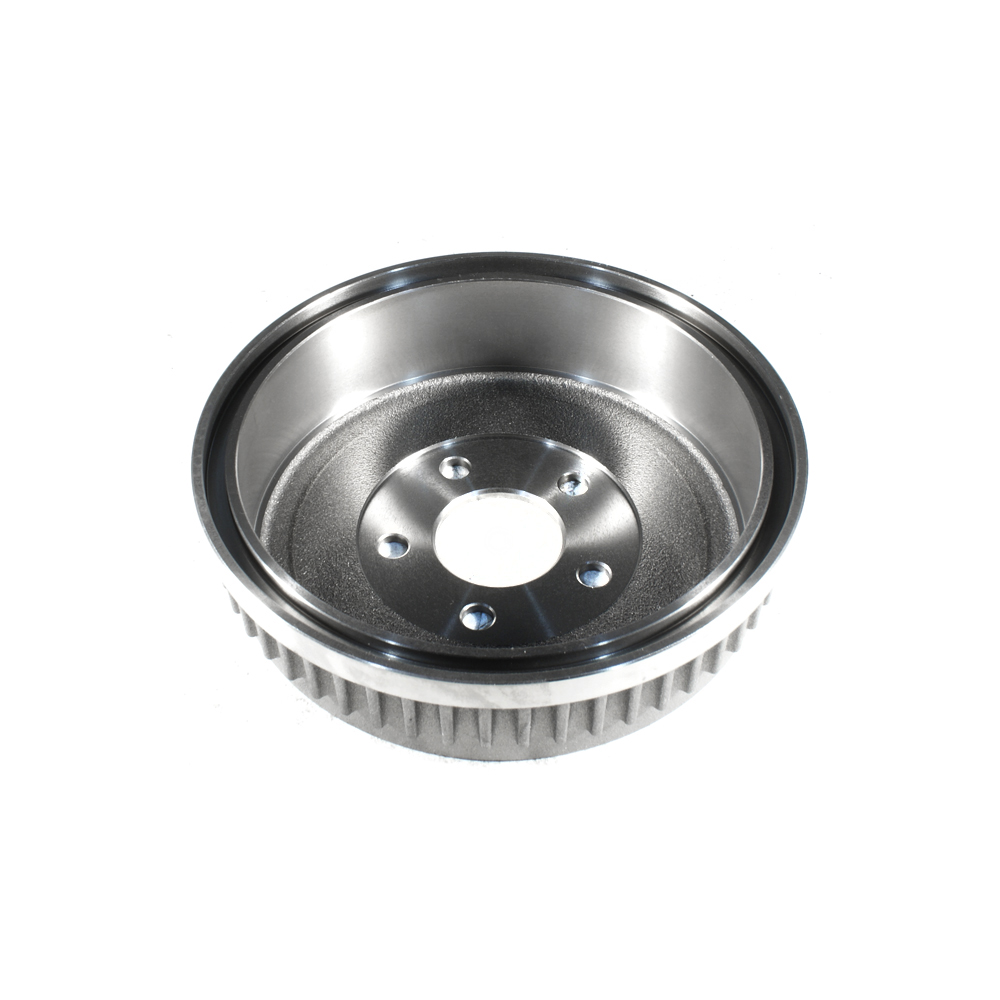

Click to EnlargeBrake Drum
$53.80 each
Raybestos: 9570
OE Number: F58Z1126A
Product Number: BD80011
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 15.50 |
| Outside Diameter (mm): | 294.00 |
| Outside Diameter (in): | 11.57 |
| Inside Diameter (mm): | 250.00 |
| Inside Diameter (in): | 9.84 |
| Center Hole Diameter (mm): | 64.50 |
| Center Hole Diameter (in): | 2.54 |
| Product Depth (mm): | 70.30 |
| Product Depth (in): | 2.77 |
| Product Height (mm): | 76.70 |
| Product Height (in): | 3.02 |
| Nominal Thickness (mm): | 250.00 |
| Nominal Thickness (in): | 9.84 |
| Discard Thickness (mm): | 251.55 |
| Discard Thickness (in): | 9.90 |
| Maximum Drum Discard Diameter (mm): | 251.55 |
| Mounting Bolt Circle Diameter(mm): | 108.00 |
| Actual Weight (KG): | 8.600 |
| Actual Weight (lbs): | 18.96 |
| Part Description: | Brake Drum |
| F/R: | Rear |
