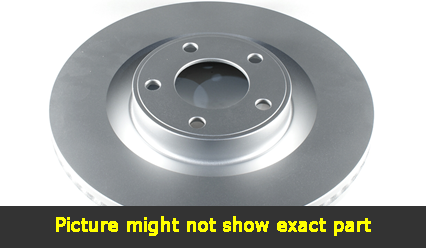

Click to EnlargeCoated Brake Rotor
$170.46 each
Raybestos: 580263
OE Number: 88936163
Product Number: PP55104
PRODUCT DESCRIPTION
Position: Front Coated Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 10 |
| Bolt Hole Diameter (mm): | 15.00 |
| Outside Diameter (mm): | 390.50 |
| Outside Diameter (in): | 15.37 |
| Inside Diameter (mm): | 255.80 |
| Inside Diameter (in): | 10.07 |
| Center Hole Diameter (mm): | 152.40 |
| Center Hole Diameter (in): | 6.00 |
| Product Height (mm): | 86.50 |
| Product Height (in): | 3.41 |
| Nominal Thickness (mm): | 39.00 |
| Nominal Thickness (in): | 1.54 |
| Discard Thickness (mm): | 36.05 |
| Discard Thickness (in): | 1.42 |
| Mounting Bolt Circle Diameter(mm): | 184.00 |
| Mounting Bolt Hole Circle Diameter (in): | 7.24 |
| Actual Weight (KG): | 19.800 |
| Actual Weight (lbs): | 43.65 |
| Part Description: | Premium Plus Brake Rotor (Coated) |
| F/R: | Front |
