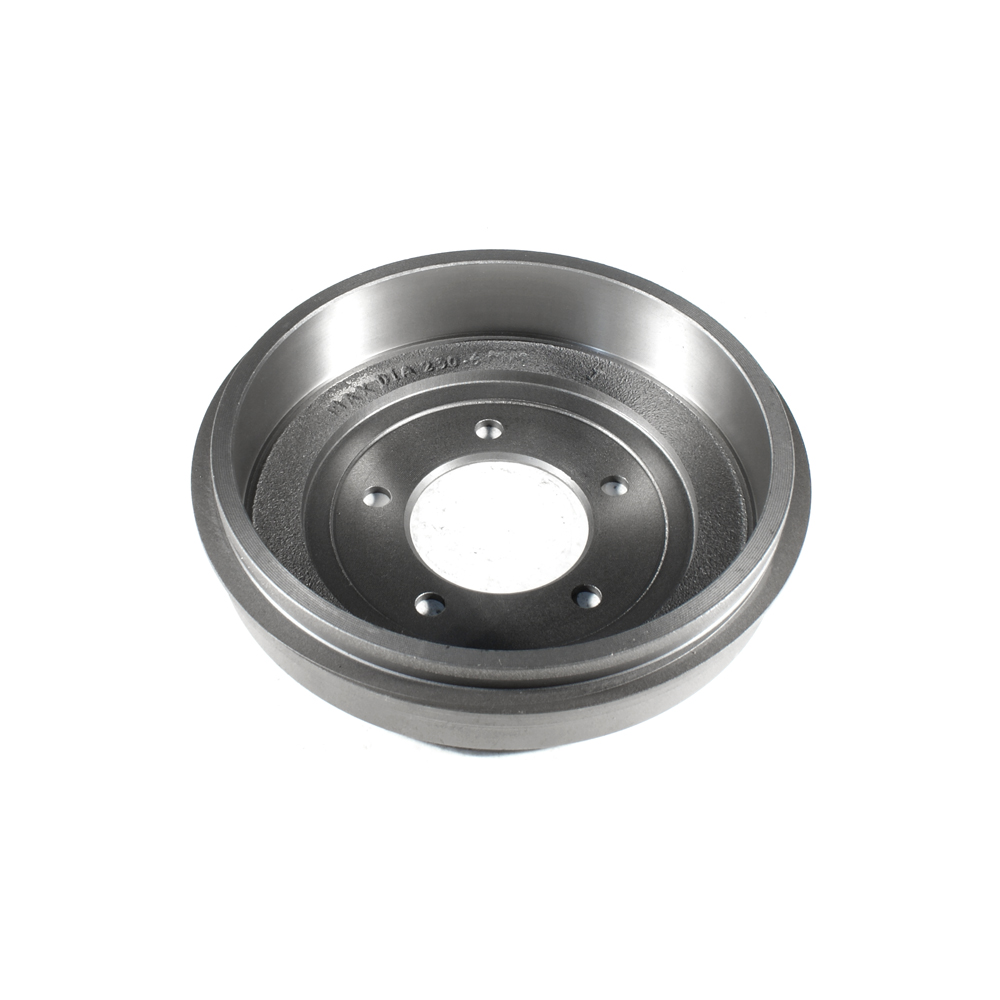

Click to EnlargeBrake Drum
$37.69 each
Raybestos: 9782
OE Number: 5105617AB
Product Number: BD80125
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 12.60 |
| Outside Diameter (mm): | 268.00 |
| Outside Diameter (in): | 10.55 |
| Inside Diameter (mm): | 228.50 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 80.00 |
| Center Hole Diameter (in): | 3.15 |
| Product Depth (mm): | 55.30 |
| Product Depth (in): | 2.18 |
| Product Height (mm): | 60.00 |
| Product Height (in): | 2.36 |
| Nominal Thickness (mm): | 228.20 |
| Nominal Thickness (in): | 8.98 |
| Discard Thickness (mm): | 230.60 |
| Discard Thickness (in): | 9.08 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 5.100 |
| Actual Weight (lbs): | 11.24 |
| Part Description: | Brake Drum |
| F/R: | Rear |
