Click to EnlargeBrake Drum
$38.61 each
Raybestos: 9760
OE Number: 5273209AA
Product Number: BD80113
PRODUCT DESCRIPTION
Position: Rear Brake Drum

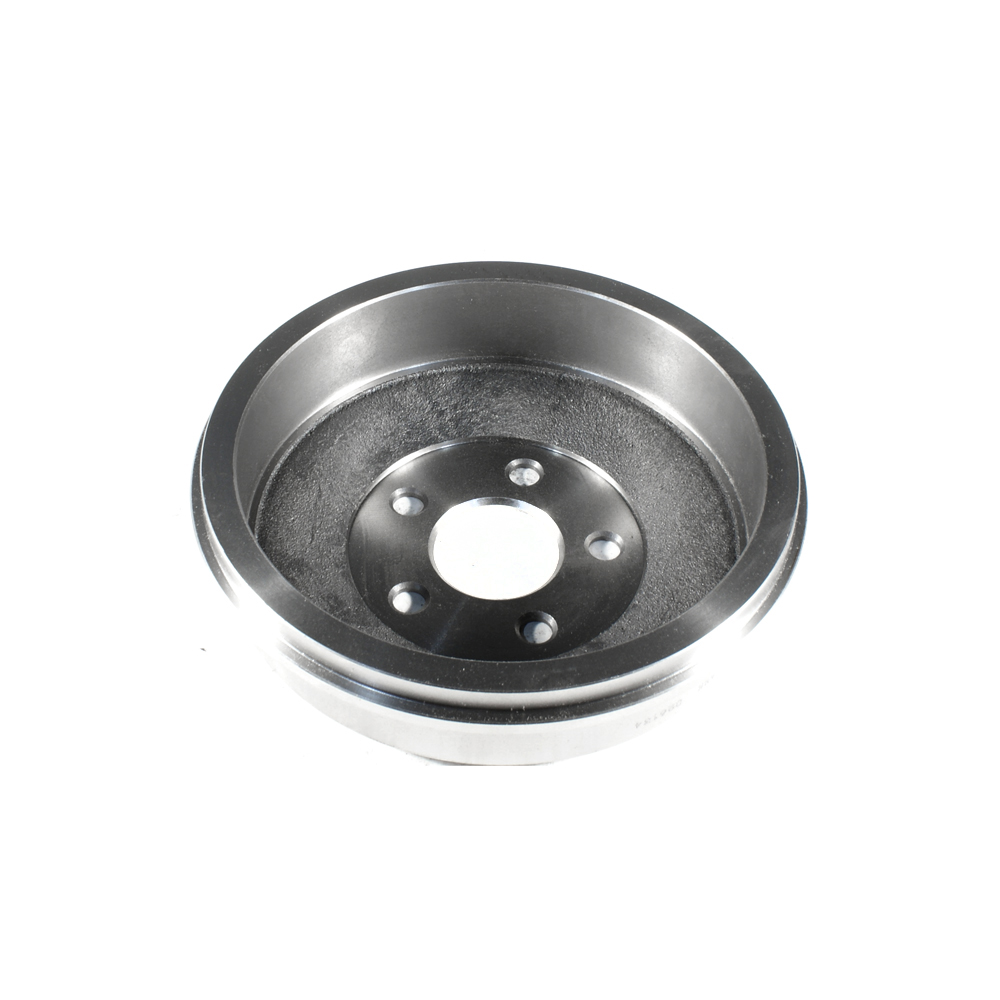

Brake Drum
271mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.30 |
| Outside Diameter (mm): | 271.00 |
| Outside Diameter (in): | 10.67 |
| Inside Diameter (mm): | 228.70 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 57.40 |
| Center Hole Diameter (in): | 2.26 |
| Product Depth (mm): | 64.40 |
| Product Depth (in): | 2.54 |
| Product Height (mm): | 70.00 |
| Product Height (in): | 2.76 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 5.680 |
| Actual Weight (lbs): | 12.52 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
