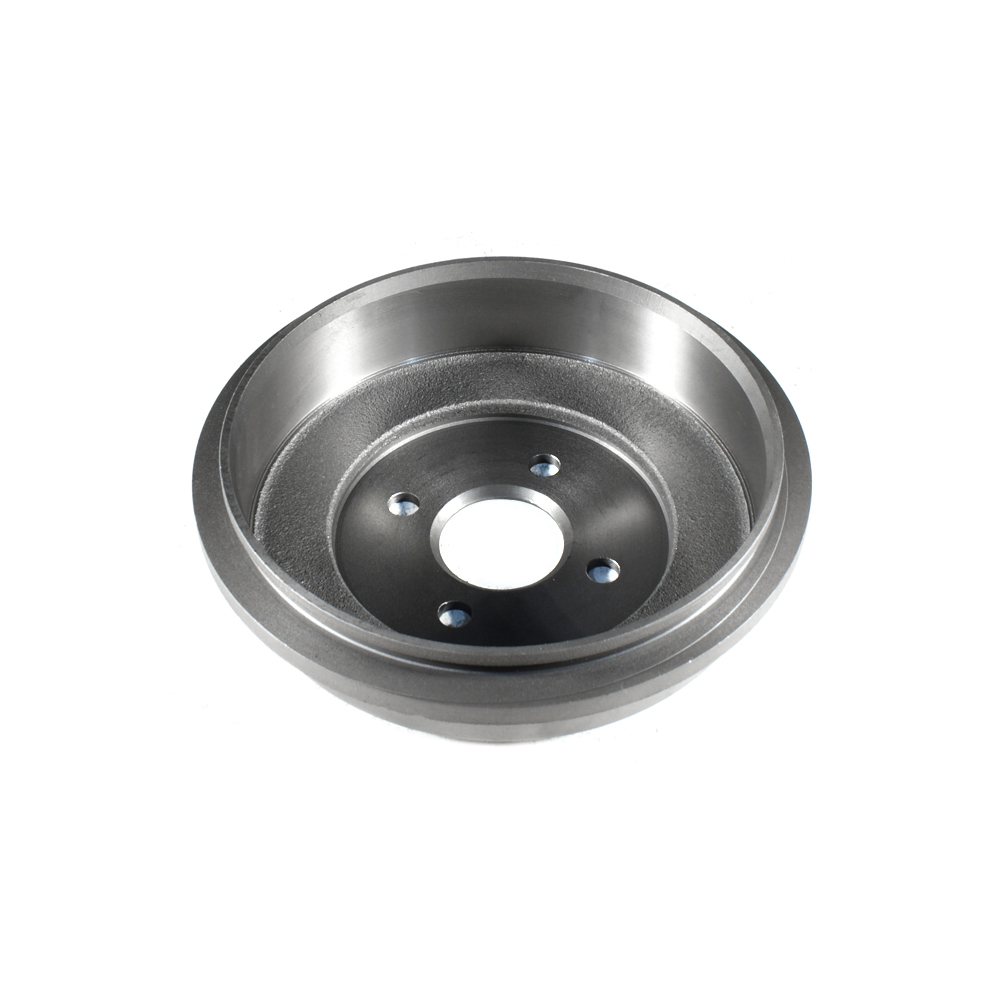

Click to EnlargeBrake Drum
$40.32 each
Raybestos: 9749
OE Number: 22671542
Product Number: BD80109
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
271mm, 4 Lug Wheel
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 14.50 |
| Outside Diameter (mm): | 271.00 |
| Outside Diameter (in): | 10.67 |
| Inside Diameter (mm): | 229.80 |
| Inside Diameter (in): | 9.05 |
| Center Hole Diameter (mm): | 57.00 |
| Center Hole Diameter (in): | 2.24 |
| Product Depth (mm): | 67.60 |
| Product Depth (in): | 2.66 |
| Product Height (mm): | 73.50 |
| Product Height (in): | 2.89 |
| Nominal Thickness (mm): | 229.80 |
| Nominal Thickness (in): | 9.05 |
| Discard Thickness (mm): | 231.00 |
| Discard Thickness (in): | 9.09 |
| Maximum Drum Discard Diameter (mm): | 231.00 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 5.640 |
| Actual Weight (lbs): | 12.43 |
| Part Description: | Brake Drum |
| F/R: | Rear |
