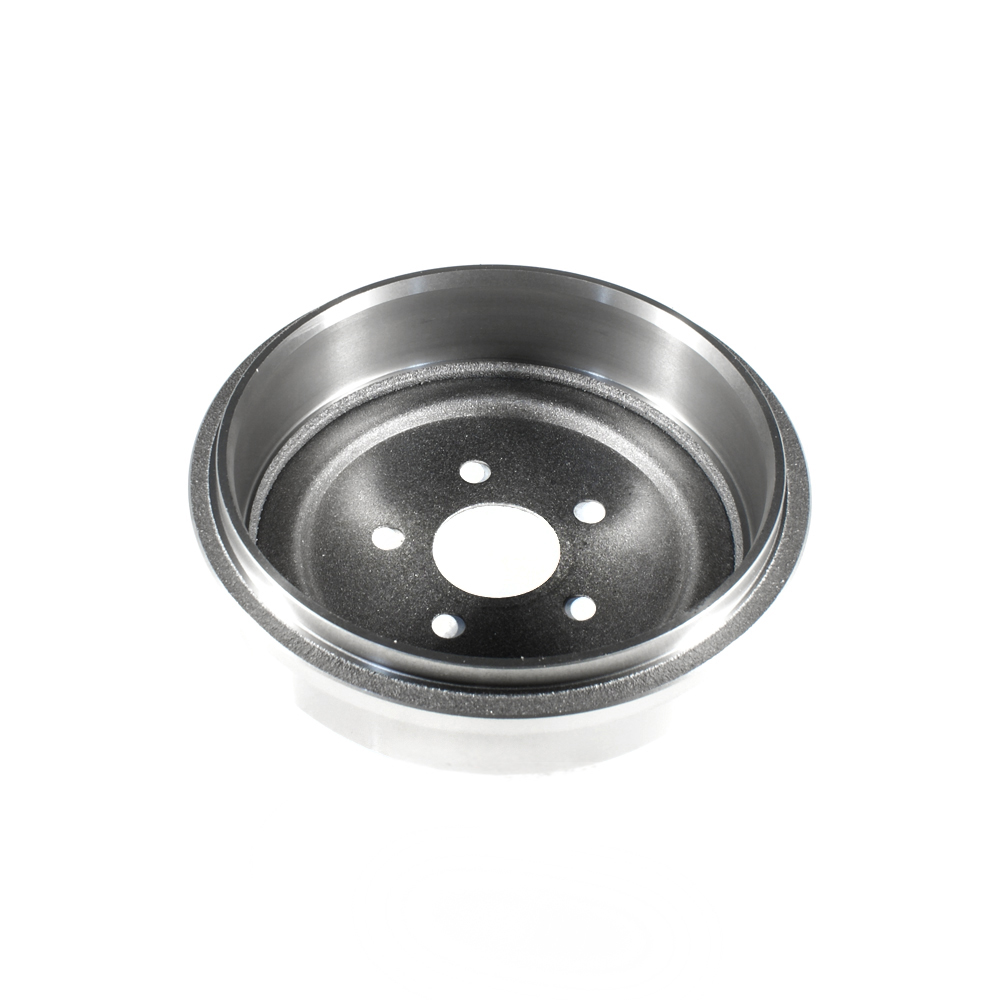

Click to EnlargeBrake Drum
$46.48 each
Raybestos: 9746
OE Number: 22696503
Product Number: BD80107
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.70 |
| Outside Diameter (mm): | 271.00 |
| Outside Diameter (in): | 10.67 |
| Inside Diameter (mm): | 230.00 |
| Inside Diameter (in): | 9.06 |
| Center Hole Diameter (mm): | 57.60 |
| Center Hole Diameter (in): | 2.27 |
| Product Depth (mm): | 65.40 |
| Product Depth (in): | 2.57 |
| Product Height (mm): | 71.00 |
| Product Height (in): | 2.80 |
| Maximum Drum Discard Diameter (mm): | 231.00 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 6.570 |
| Actual Weight (lbs): | 14.48 |
| Part Description: | Brake Drum |
| F/R: | Rear |
