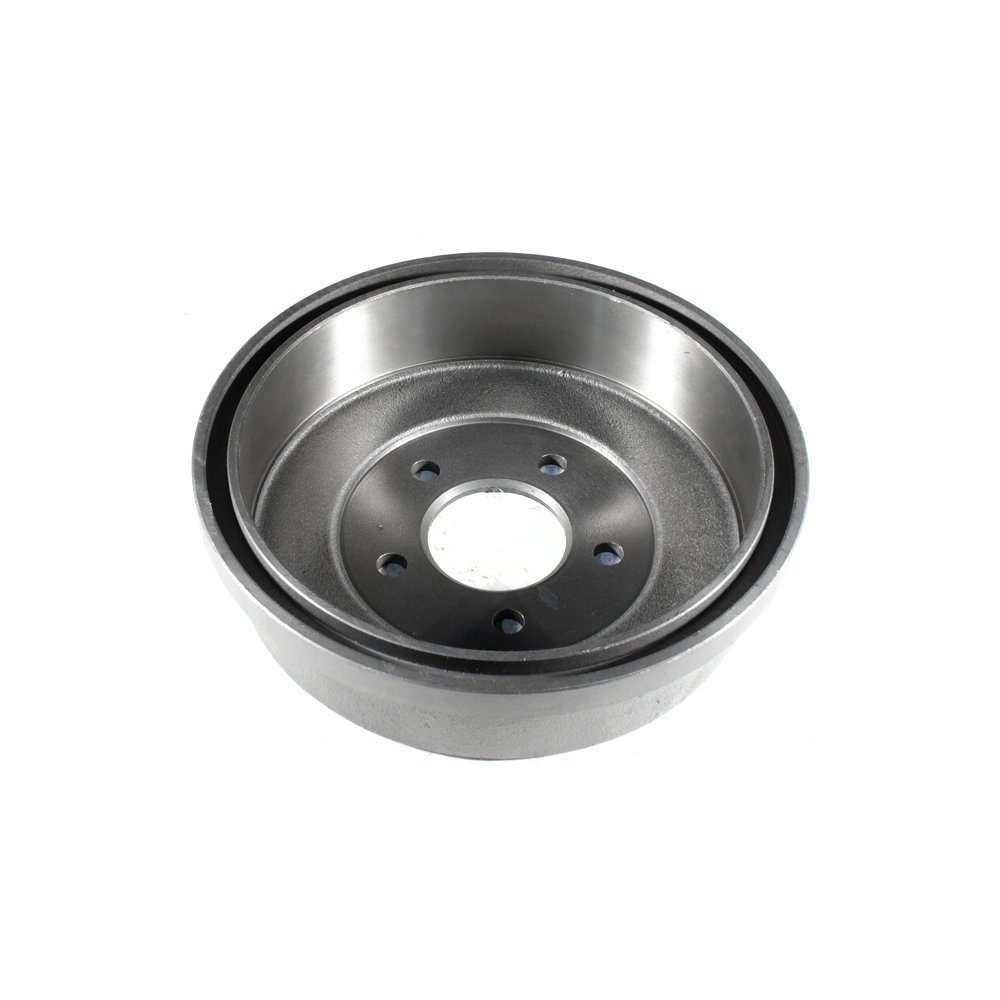

Click to EnlargeBrake Drum
$48.58 each
Raybestos: 9740
OE Number: 10304169
Product Number: BD80105
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.80 |
| Outside Diameter (mm): | 295.70 |
| Outside Diameter (in): | 11.64 |
| Inside Diameter (mm): | 250.00 |
| Inside Diameter (in): | 9.84 |
| Center Hole Diameter (mm): | 70.80 |
| Center Hole Diameter (in): | 2.79 |
| Product Depth (mm): | 65.80 |
| Product Depth (in): | 2.59 |
| Product Height (mm): | 73.70 |
| Product Height (in): | 2.90 |
| Nominal Thickness (mm): | 250.00 |
| Nominal Thickness (in): | 9.84 |
| Discard Thickness (mm): | 251.50 |
| Discard Thickness (in): | 9.90 |
| Maximum Drum Discard Diameter (mm): | 251.50 |
| Mounting Bolt Circle Diameter(mm): | 115.00 |
| Actual Weight (KG): | 6.840 |
| Actual Weight (lbs): | 15.08 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
