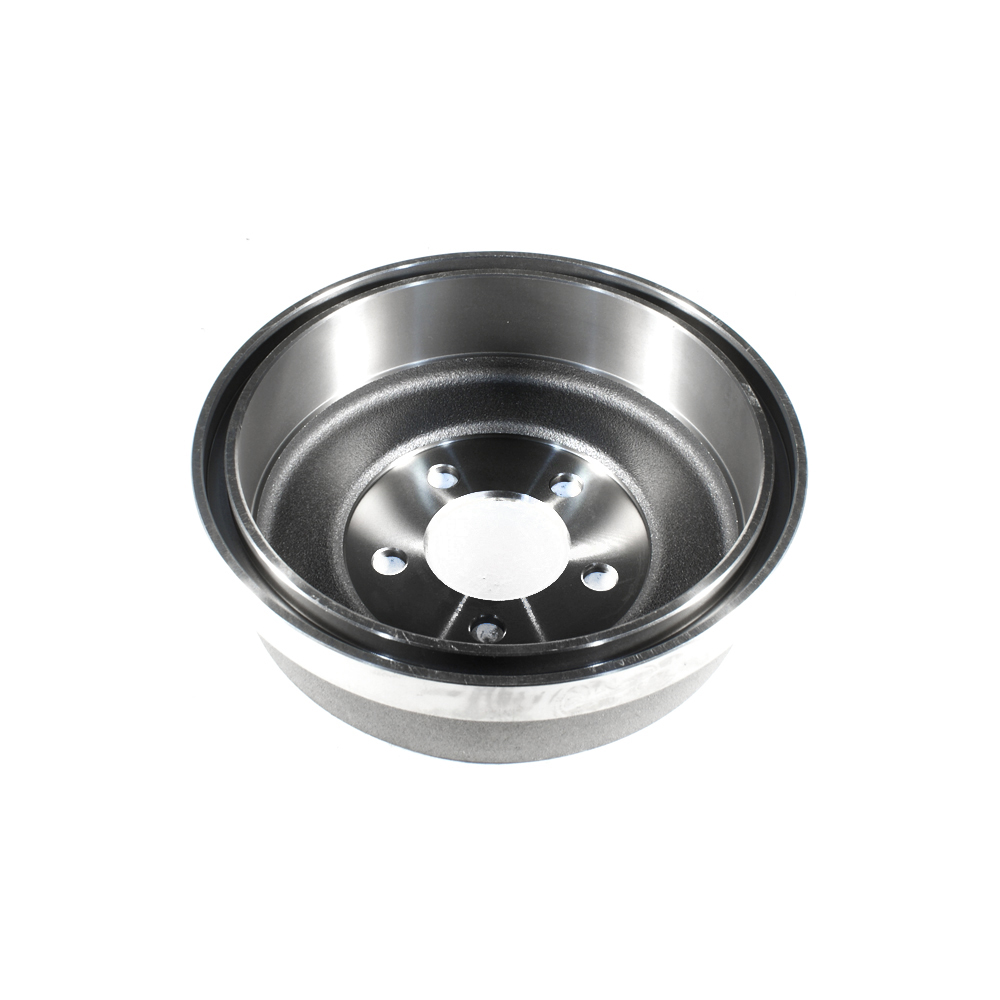

Click to EnlargeBrake Drum
$57.19 each
Raybestos: 9716
OE Number: 52128270AA
Product Number: BD80101
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 16.70 |
| Outside Diameter (mm): | 300.80 |
| Outside Diameter (in): | 11.84 |
| Inside Diameter (mm): | 254.00 |
| Inside Diameter (in): | 10.00 |
| Center Hole Diameter (mm): | 72.00 |
| Center Hole Diameter (in): | 2.83 |
| Product Depth (mm): | 78.30 |
| Product Depth (in): | 3.08 |
| Product Height (mm): | 83.50 |
| Product Height (in): | 3.29 |
| Nominal Thickness (mm): | 254.00 |
| Nominal Thickness (in): | 10.00 |
| Discard Thickness (mm): | 255.50 |
| Discard Thickness (in): | 10.06 |
| Maximum Drum Discard Diameter (mm): | 255.50 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 7.750 |
| Actual Weight (lbs): | 17.08 |
| Part Description: | Brake Drum |
| F/R: | Rear |
