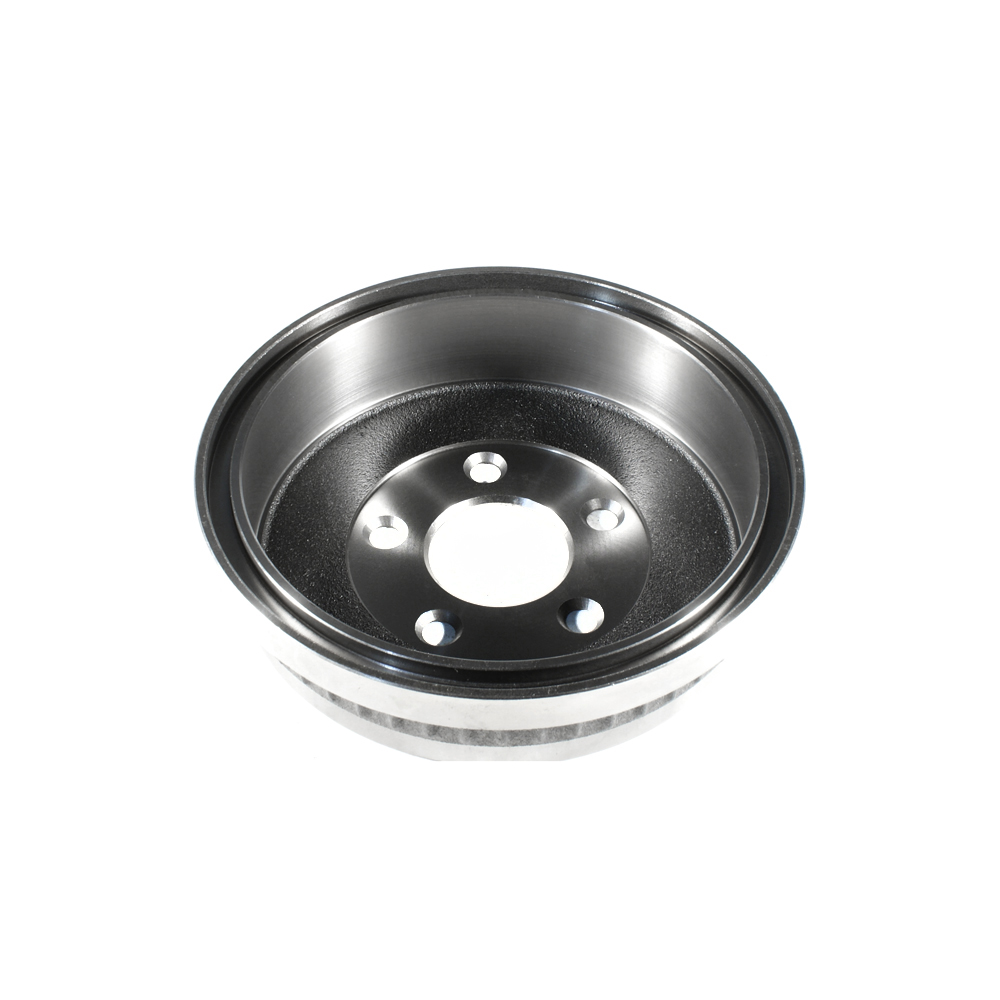

Click to EnlargeBrake Drum
$37.84 each
Raybestos: 9712
OE Number: 1F1Z1126BA
Product Number: BD80099
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.80 |
| Outside Diameter (mm): | 267.00 |
| Outside Diameter (in): | 10.51 |
| Inside Diameter (mm): | 225.00 |
| Inside Diameter (in): | 8.86 |
| Center Hole Diameter (mm): | 64.50 |
| Center Hole Diameter (in): | 2.54 |
| Product Depth (mm): | 61.40 |
| Product Depth (in): | 2.42 |
| Product Height (mm): | 66.90 |
| Product Height (in): | 2.63 |
| Nominal Thickness (mm): | 225.00 |
| Nominal Thickness (in): | 8.86 |
| Discard Thickness (mm): | 226.50 |
| Discard Thickness (in): | 8.92 |
| Maximum Drum Discard Diameter (mm): | 226.50 |
| Mounting Bolt Circle Diameter(mm): | 107.95 |
| Actual Weight (KG): | 5.640 |
| Actual Weight (lbs): | 12.43 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
