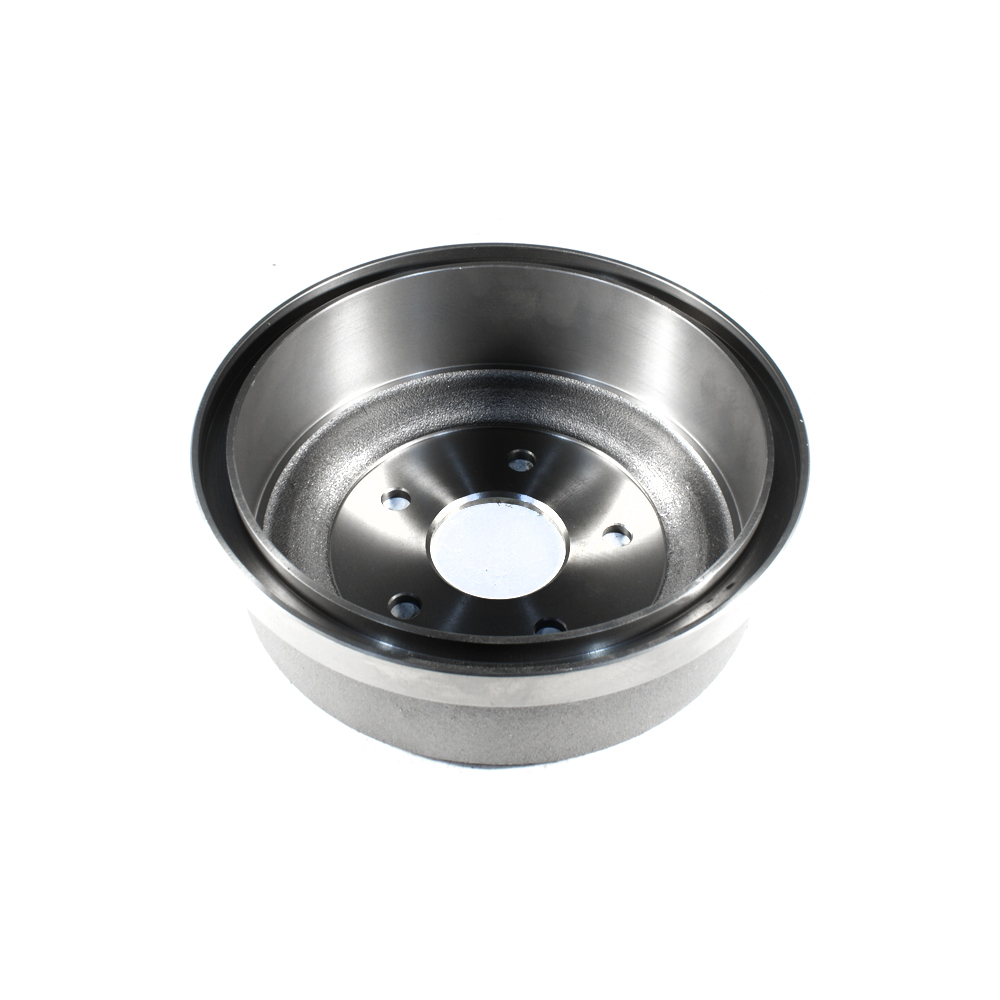

Click to EnlargeBrake Drum
$71.08 each
Raybestos: 9695
OE Number: 52009800AA
Product Number: BD80086
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 17.10 |
| Outside Diameter (mm): | 327.20 |
| Outside Diameter (in): | 12.88 |
| Inside Diameter (mm): | 279.80 |
| Inside Diameter (in): | 11.02 |
| Center Hole Diameter (mm): | 78.50 |
| Center Hole Diameter (in): | 3.09 |
| Product Depth (mm): | 96.00 |
| Product Depth (in): | 3.78 |
| Product Height (mm): | 104.30 |
| Product Height (in): | 4.11 |
| Nominal Thickness (mm): | 279.80 |
| Nominal Thickness (in): | 11.02 |
| Discard Thickness (mm): | 282.30 |
| Discard Thickness (in): | 11.11 |
| Maximum Drum Discard Diameter (mm): | 282.30 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 11.700 |
| Actual Weight (lbs): | 25.79 |
| Part Description: | Brake Drum |
| F/R: | Rear |
