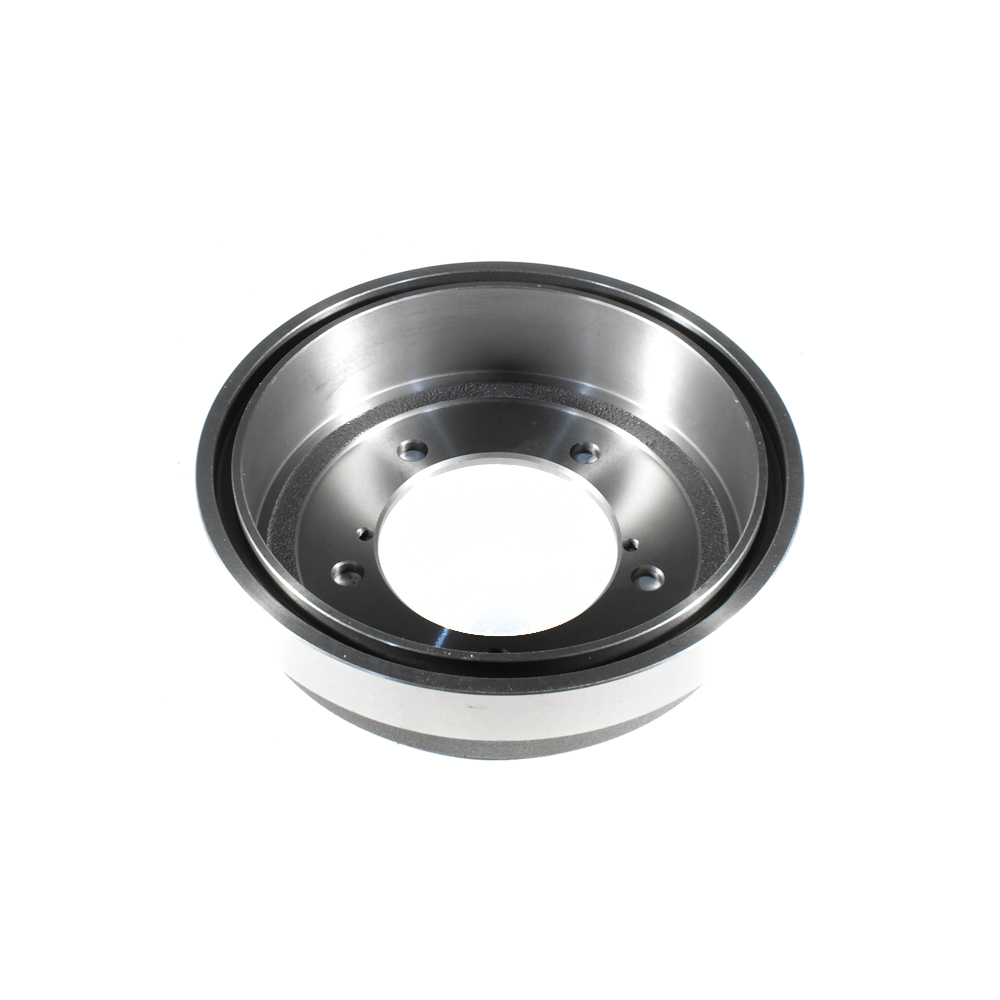

Click to EnlargeBrake Drum
$41.08 each
Raybestos: 9693
OE Number: 30024672
Product Number: BD80084
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 12.90 |
| Outside Diameter (mm): | 262.00 |
| Outside Diameter (in): | 10.31 |
| Inside Diameter (mm): | 220.00 |
| Inside Diameter (in): | 8.66 |
| Center Hole Diameter (mm): | 108.20 |
| Center Hole Diameter (in): | 4.26 |
| Product Depth (mm): | 56.80 |
| Product Depth (in): | 2.24 |
| Product Height (mm): | 64.00 |
| Product Height (in): | 2.52 |
| Maximum Drum Discard Diameter (mm): | 222.00 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 5.600 |
| Actual Weight (lbs): | 12.33 |
| Part Description: | Brake Drum |
| F/R: | Rear |
