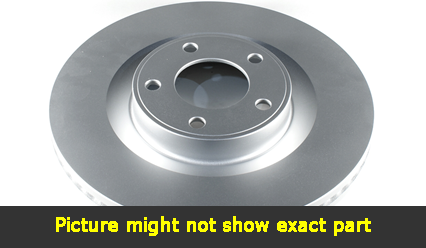

Click to EnlargeCoated Brake Rotor
$33.80 each
Raybestos: 96817
OE Number: BJ0Y3325X
Product Number: PP31284
PRODUCT DESCRIPTION
Position: Front Coated Brake Rotor
Brake Rotor
235mm
| Part Label: | Brake Rotor |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 13.10 |
| Outside Diameter (mm): | 234.60 |
| Outside Diameter (in): | 9.24 |
| Inside Diameter (mm): | 140.80 |
| Inside Diameter (in): | 5.54 |
| Center Hole Diameter (mm): | 55.00 |
| Center Hole Diameter (in): | 2.17 |
| Product Height (mm): | 46.20 |
| Product Height (in): | 1.82 |
| Nominal Thickness (mm): | 24.00 |
| Nominal Thickness (in): | 0.94 |
| Discard Thickness (mm): | 22.00 |
| Discard Thickness (in): | 0.87 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Mounting Bolt Hole Circle Diameter (in): | 3.94 |
| Actual Weight (KG): | 4.470 |
| Actual Weight (lbs): | 9.85 |
| Part Description: | Premium Plus Brake Rotor (Coated) |
| F/R: | Front |
