Click to EnlargeBrake Drum
$28.39 each
Raybestos: 9538
OE Number: B59626251D
Product Number: BD80006
PRODUCT DESCRIPTION
Position: Rear Brake Drum

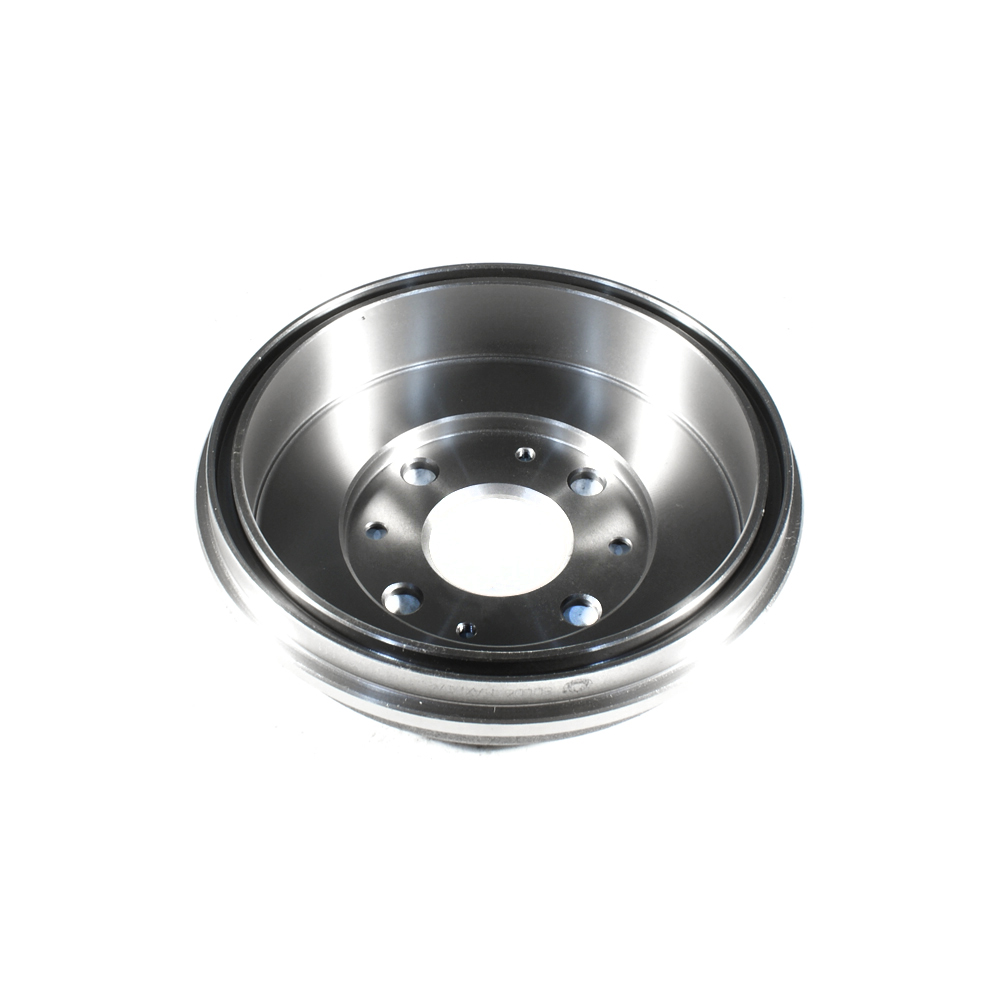

Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 13.00 |
| Outside Diameter (mm): | 241.00 |
| Outside Diameter (in): | 9.49 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 55.00 |
| Center Hole Diameter (in): | 2.17 |
| Product Depth (mm): | 51.80 |
| Product Depth (in): | 2.04 |
| Product Height (mm): | 58.00 |
| Product Height (in): | 2.28 |
| Maximum Drum Discard Diameter (mm): | 201.50 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 4.000 |
| Actual Weight (lbs): | 8.82 |
| Part Description: | Brake Drum |
| F/R: | Rear |
