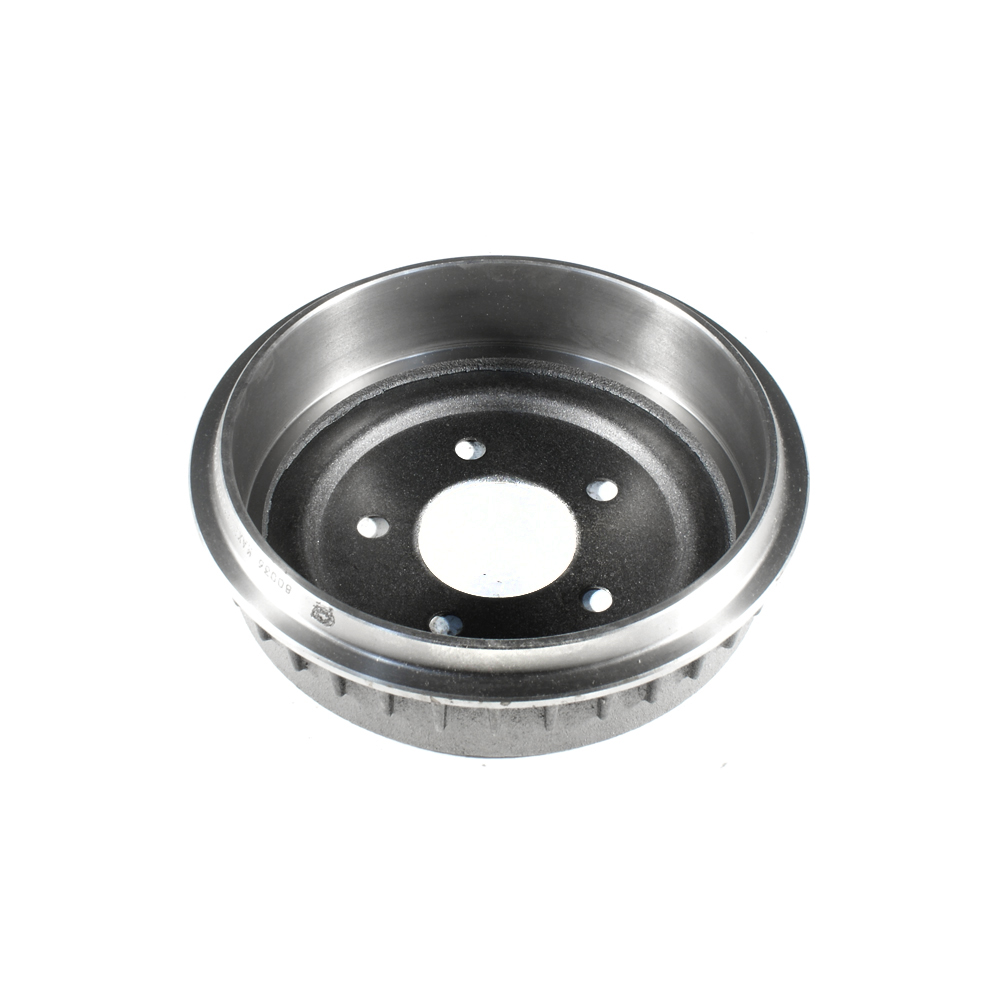

Click to EnlargeBrake Drum
$38.84 each
Raybestos: 9651
OE Number: F87Z1126BA
Product Number: BD80036
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
269mm
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.60 |
| Outside Diameter (mm): | 269.00 |
| Outside Diameter (in): | 10.59 |
| Inside Diameter (mm): | 228.60 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 71.30 |
| Center Hole Diameter (in): | 2.81 |
| Product Depth (mm): | 67.50 |
| Product Depth (in): | 2.66 |
| Product Height (mm): | 72.00 |
| Product Height (in): | 2.83 |
| Maximum Drum Discard Diameter (mm): | 230.10 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 4.200 |
| Actual Weight (lbs): | 9.26 |
| Part Description: | Brake Drum |
| F/R: | Rear |
