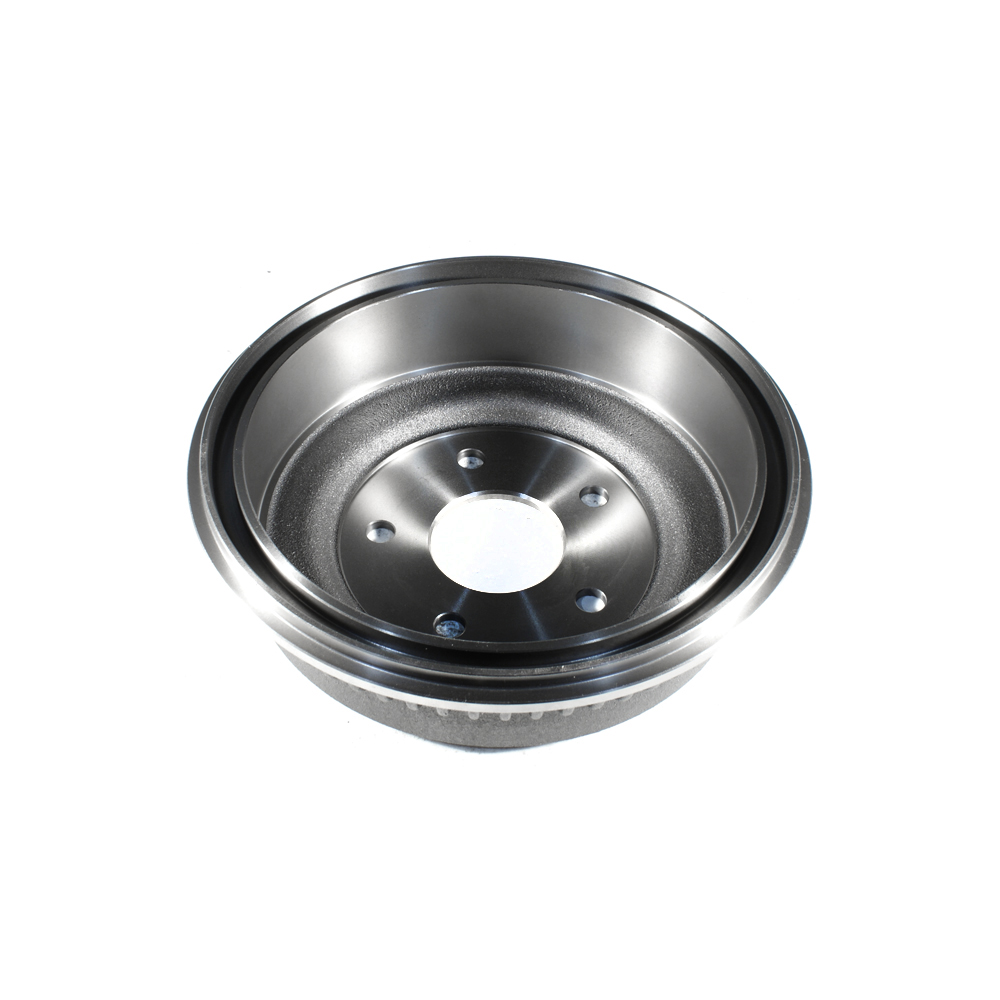

Click to EnlargeBrake Drum
$70.36 each
Raybestos: 9563
OE Number: 52008315
Product Number: BD80009
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 17.20 |
| Outside Diameter (mm): | 344.00 |
| Outside Diameter (in): | 13.54 |
| Inside Diameter (mm): | 279.40 |
| Inside Diameter (in): | 11.00 |
| Center Hole Diameter (mm): | 78.50 |
| Center Hole Diameter (in): | 3.09 |
| Product Depth (mm): | 88.60 |
| Product Depth (in): | 3.49 |
| Product Height (mm): | 95.00 |
| Product Height (in): | 3.74 |
| Maximum Drum Discard Diameter (mm): | 281.60 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Actual Weight (KG): | 11.350 |
| Actual Weight (lbs): | 25.02 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
