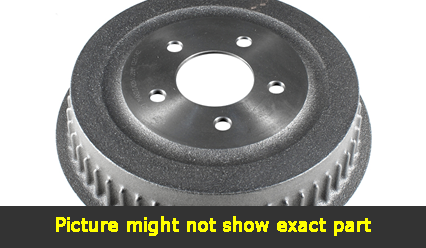

Click to EnlargeBrake Drum
$61.00 each
Raybestos: 9792
Product Number: BD35126
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
From 1/7/07
Car Specs:
Drive Type: FWD; 4WD;
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.70 |
| Outside Diameter (mm): | 297.00 |
| Outside Diameter (in): | 11.69 |
| Inside Diameter (mm): | 254.30 |
| Inside Diameter (in): | 10.01 |
| Center Hole Diameter (mm): | 72.00 |
| Center Hole Diameter (in): | 2.83 |
| Product Depth (mm): | 66.00 |
| Product Depth (in): | 2.60 |
| Product Height (mm): | 72.00 |
| Product Height (in): | 2.83 |
| Nominal Thickness (mm): | 254.00 |
| Nominal Thickness (in): | 10.00 |
| Discard Thickness (mm): | 256.30 |
| Discard Thickness (in): | 10.09 |
| Maximum Drum Diameter(mm): | 256.30 |
| Maximum Drum Discard Diameter (mm): | 256.30 |
| Actual Weight (KG): | 8.230 |
| Actual Weight (lbs): | 18.14 |
| Part Description: | Brake Drum |
| F/R: | Rear |
