Click to Enlarge

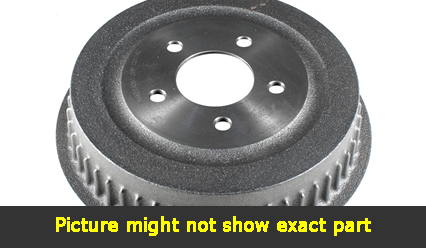

Click to EnlargeBrake Drum
$33.35 each
Raybestos: 9784
Product Number: BD35119
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 12.50 |
| Outside Diameter (mm): | 244.70 |
| Outside Diameter (in): | 9.63 |
| Inside Diameter (mm): | 203.00 |
| Inside Diameter (in): | 7.99 |
| Center Hole Diameter (mm): | 76.00 |
| Center Hole Diameter (in): | 2.99 |
| Product Depth (mm): | 50.40 |
| Product Depth (in): | 1.98 |
| Product Height (mm): | 55.30 |
| Product Height (in): | 2.18 |
| Nominal Thickness (mm): | 203.20 |
| Nominal Thickness (in): | 8.00 |
| Discard Thickness (mm): | 205.20 |
| Discard Thickness (in): | 8.08 |
| Maximum Drum Discard Diameter (mm): | 205.20 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 4.000 |
| Actual Weight (lbs): | 8.82 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
